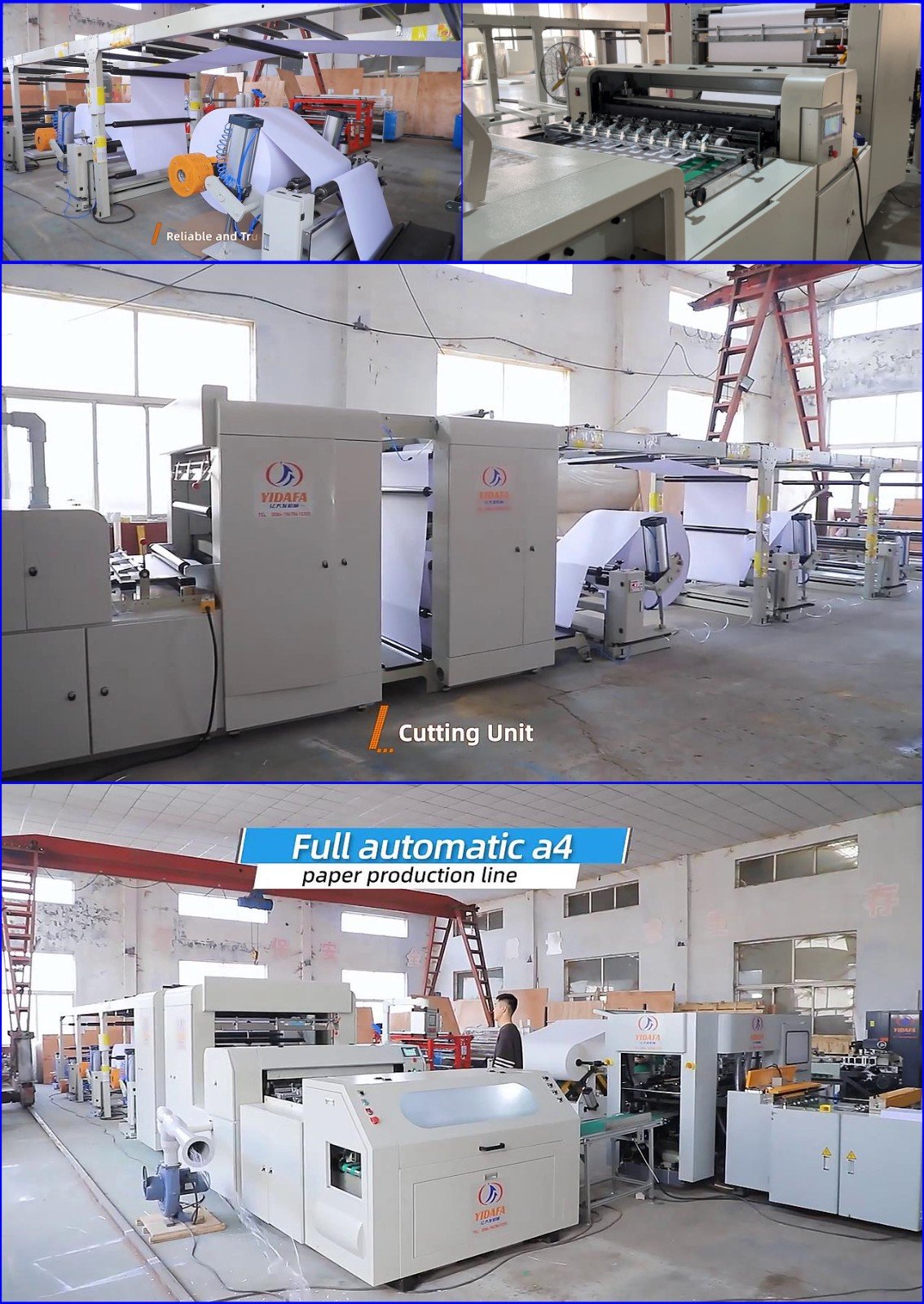

Full automatic a4 paper production line.including cutting unit and packaging function unit.
5~6 ream per minute.Full automatic a4 paper production line.including cutting unit and packaging function unit.

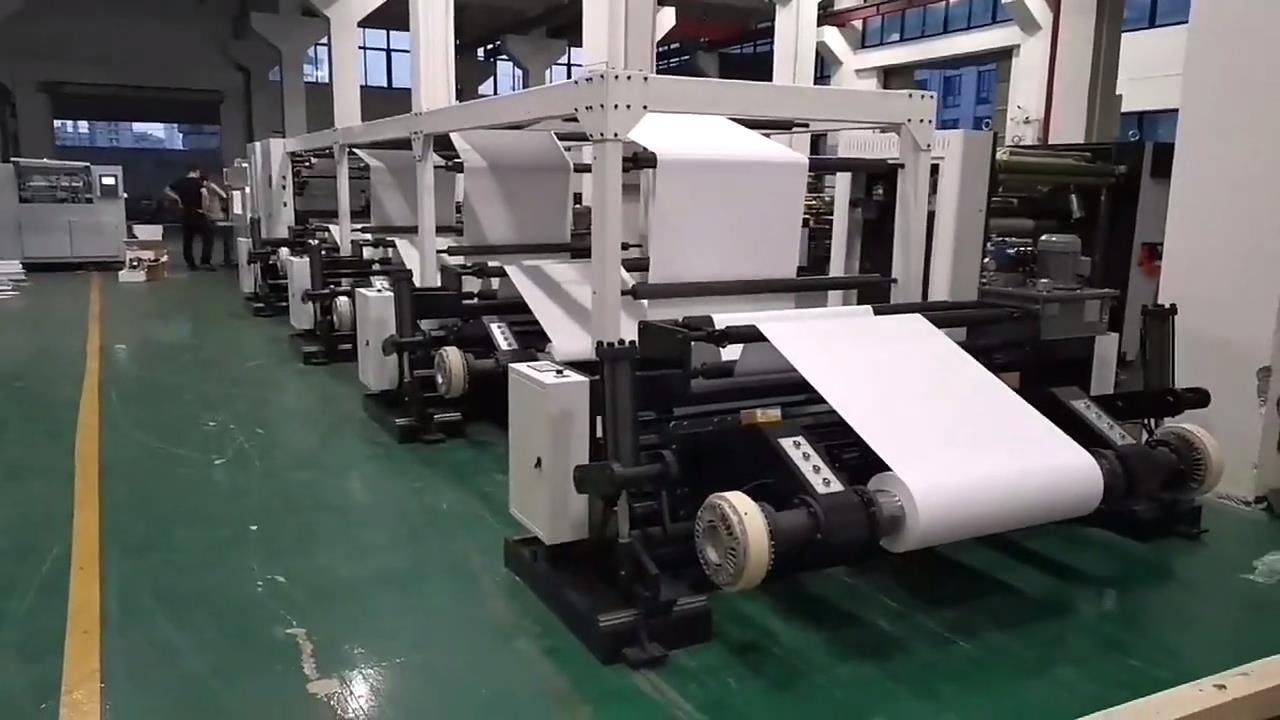

Four-reel a4 paper cutting packaging machine
This is full automatic a4 paper cutting and packaging machine.It could load four paper rolls.Its output speed for making a4 size paper reams could be 6 reams per minute.A4 paper is defined by ISO 216 of the International Organization for Standardization, and its specification is 21cm×29.7cm (210mm×297mm). The paper size used by most countries in the world adopts this international standard. This standard was originally incorporated into DIN (number DIN 476) by the Weimar Republic in 1922, although some of the formats were also developed by France itself during the same period, but were later forgotten. ISO 216 defines three groups of paper sizes A, B, and C. Group C paper sizes are mainly used for envelopes.YIDAFA a4 paper cutting machine could a4,a3,a5 size paper sheet automatically.Connecting with a4 paper ream packaging machine,it could be full automatic a4 paper production line.
Model 1100 A4 paper cutting and packing machine | |
Max unwinding diameter | φ1100mm |
Reference weight of cutting paper | 40~120gsm |
Max cut width | 1100mm |
Cutting length | 100-500mm |
Cutting speed | 5~6 reams/min. |
Cutting precision | ±0.2mm |
Voltage: | AC380V/220V x 50HZ |
Total power | 11KW |
Main function
| 1) can be 4 rolls, |
2) With paper stacker | |
3) With round cutter for slitting | |
4）With belt transferring automatic to packaging unit | |
If you have any needs , please fill out the form below and we will contact you as soon as possible.
