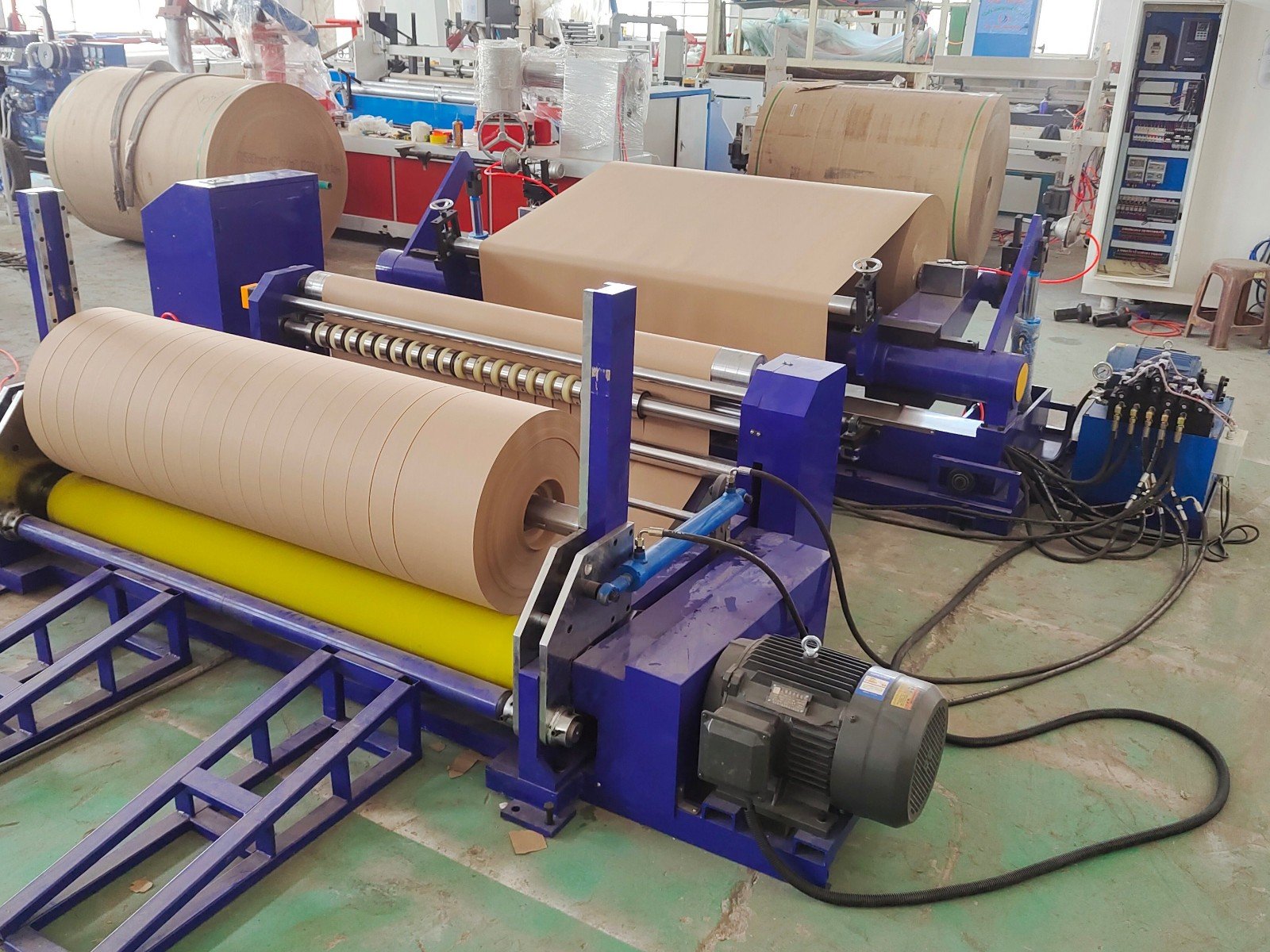

1600D Jumbo Roll Paper Slitter Rewinder Machine
1600D high-speed slitting machine
Slitter parameters: Applicable raw material width: 1600mm (standard)
Applicable raw material outer diameter: 1200mm (maximum)
1200mm diameter after winding (maximum)
Minimum slitting width: 50mm (minimum)
The maximum line speed of slitting: 350M/min
Reel diameter: 76MM
Host power: 7.5KW
Tool post lifting motor: 0.75KW
Raw material lifting motor: 0.75KW
Raw material clamping motor: 1.1KW × 2
Host size: 3100×3000×1360mm
Electricity motor : 380V,50HZ.
