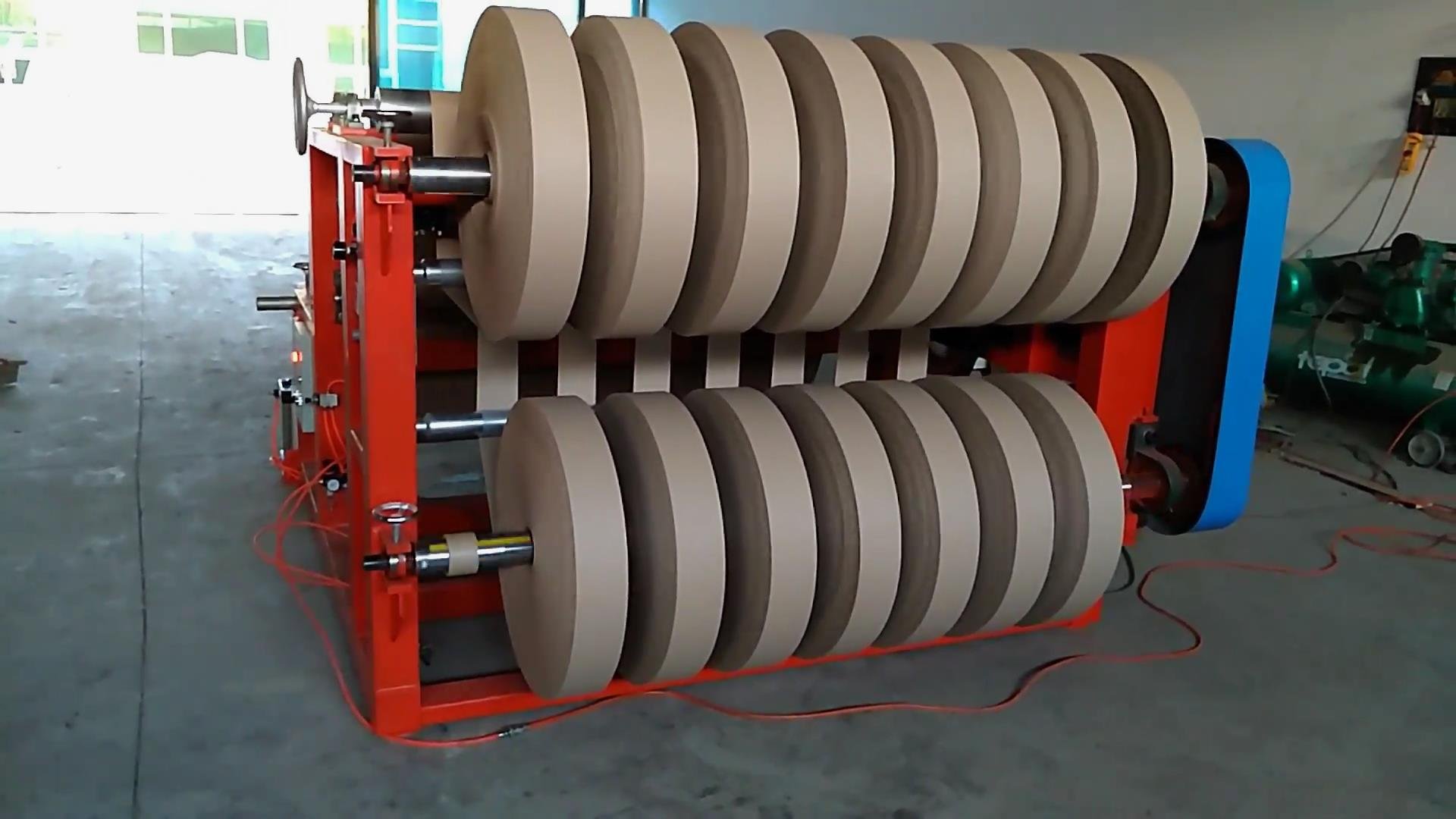

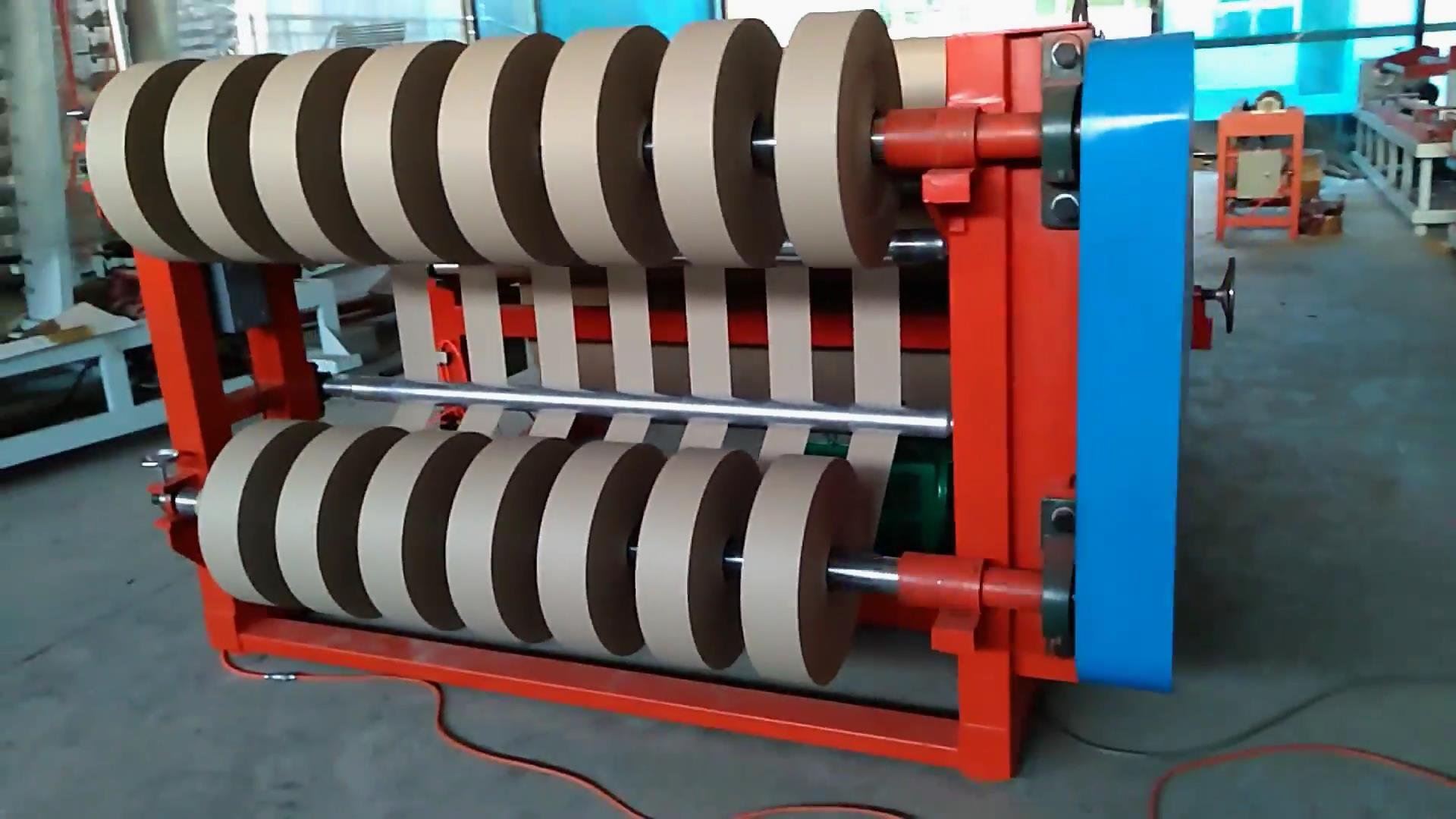

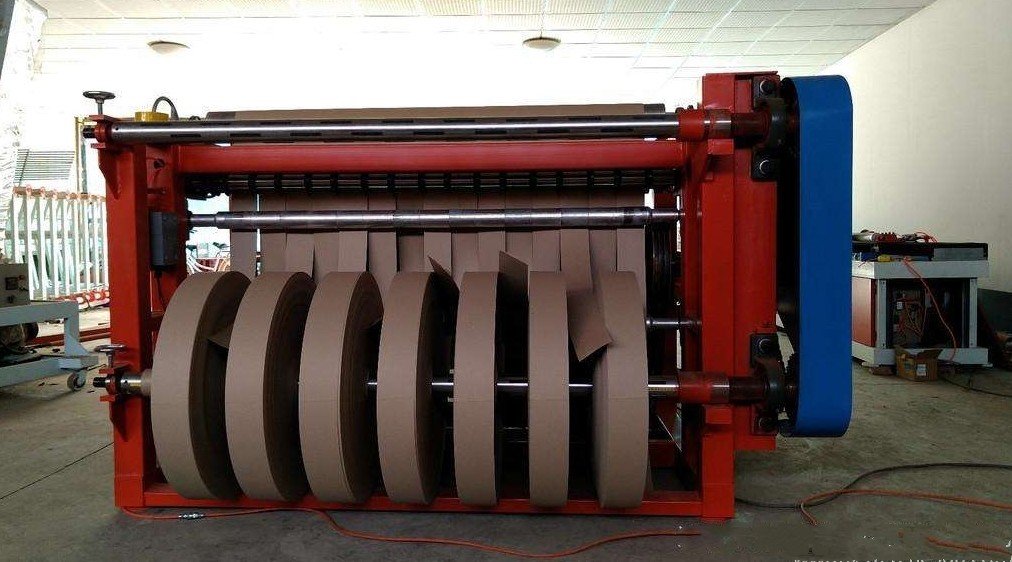

1600C kraft paper slitting rewinding machine

Paper roll to roll slitting rewinding machine

PRODUCT DETAILS

paper roll to roll slitter rewinder machine

PRODUCT DETAILS

1600C kraft paper slitting rewinding machine

paper slitter rewinder

paper slitting rewinder machine

Usage
  Suitable for all kinds of kraft paper slitter rewinder .Tea paperboard,grass paperboard,calico art pape
■Feature
  1A pair of knives cutting
  2Plate and smooth on the both sides of the paper strap after cutting
  3Non-raw edge of paper trap and non paper coiling solid structure
  4Manual rectify
  5High output can offer three coiling tube machine to use
  6Mold steel armor plate structure,fin precision.


1600A paper slitter main specification and equipment

Machine Parameter

Jumbo roll width

40-1600mm

Jumbo roll max unwind width

1600mm

Finish roll max diameter

800mm

Max slitting speed

300m/min

Slitting rang

40-700g

Winding way

Air pressure stalk involution

Number of blades

25sets

Paper loading way

pneumatic

Speed adjust

electromagnetic

Power input

380V3phare4wire



Machine Size

MainframeL*W*H

2400*2300*1500mm

Total weight

About 1300kg



Driving System

main motor

4KW

Moving speed

1400r/min

Adjust error

Manual

Rewinding decelerate

Pully and sprokets

Tension adjust

Manual gore the spring friction plate

Drving way

Chain and belt

Bearing

wanxiang



Control System

Driving components

CHNT

Signal components

Speed table
