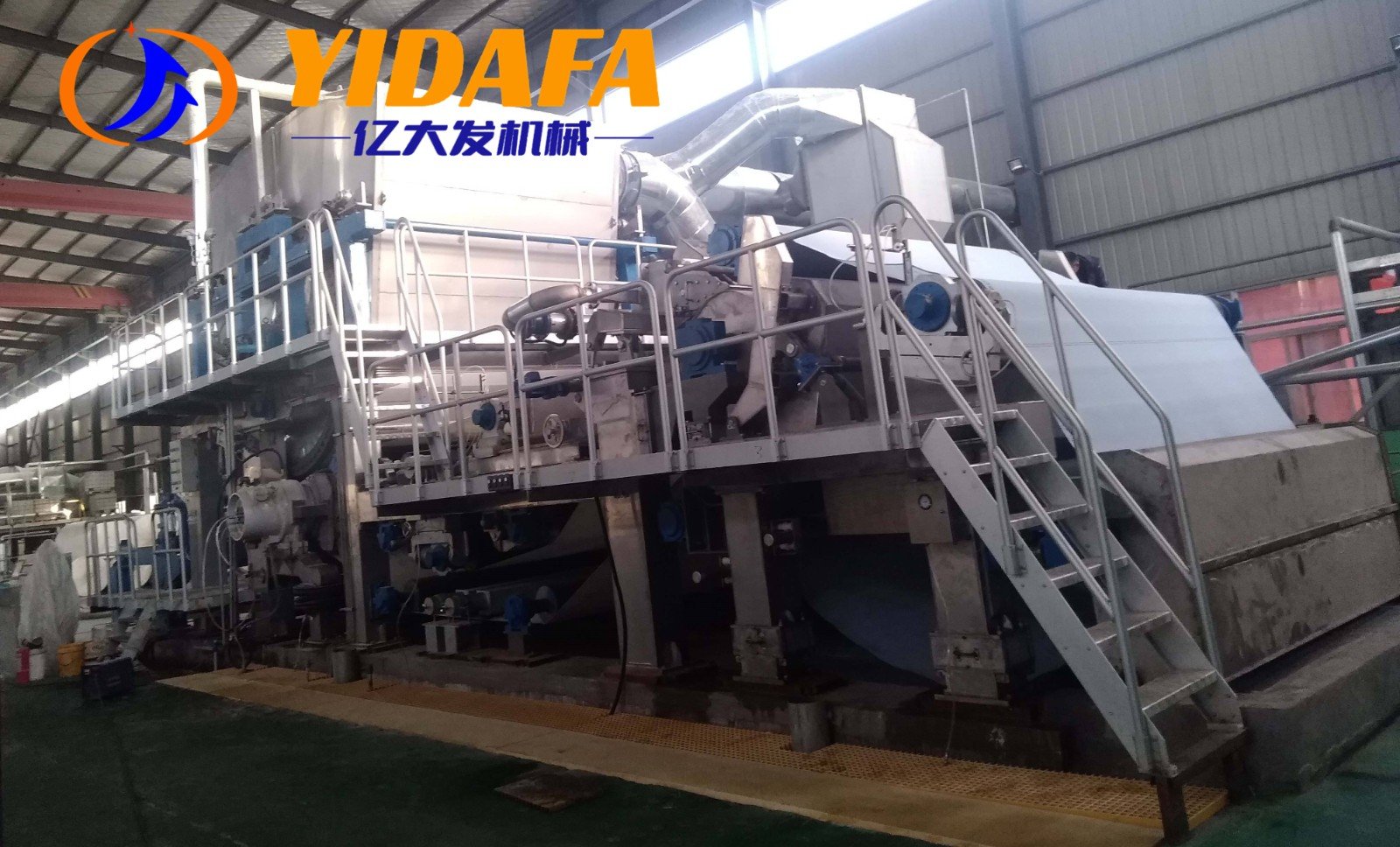

YIDAFA parent tissue paper machine could make jumbo paper rolls for tissue paper making plant.The raw material could be waste paper,wood pulp board and sugarcane bagasse, bamboo ,wood chips etc.

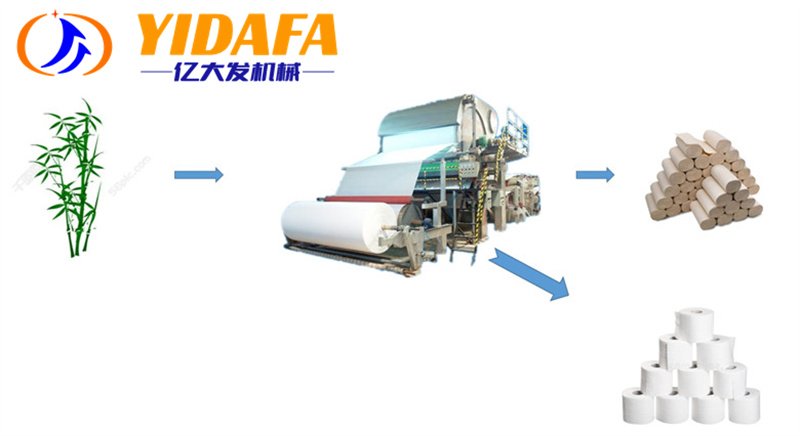

This machine is completely the whole production line from waste paper or wood pulp ,bamboo,sugarcane bagasse,rice straw to jumbo parent tissue paper rolls.
YIDAFA parent tissue paper machine is widely used in paper pulp and toilet paper making industry.It could make raw material jumbo tissue paper rolls for househould tissue paper making plant.Jumbo tissue paper rolls could be converted into toilet paper ,kitchen towel,facial tissue,napkin tissue and hand towel etc.It is necessary for Tissue paper industry.
Recycled paper pulp machine or chemical virgin pulp machine.
a.Recycled paper pulp machine.

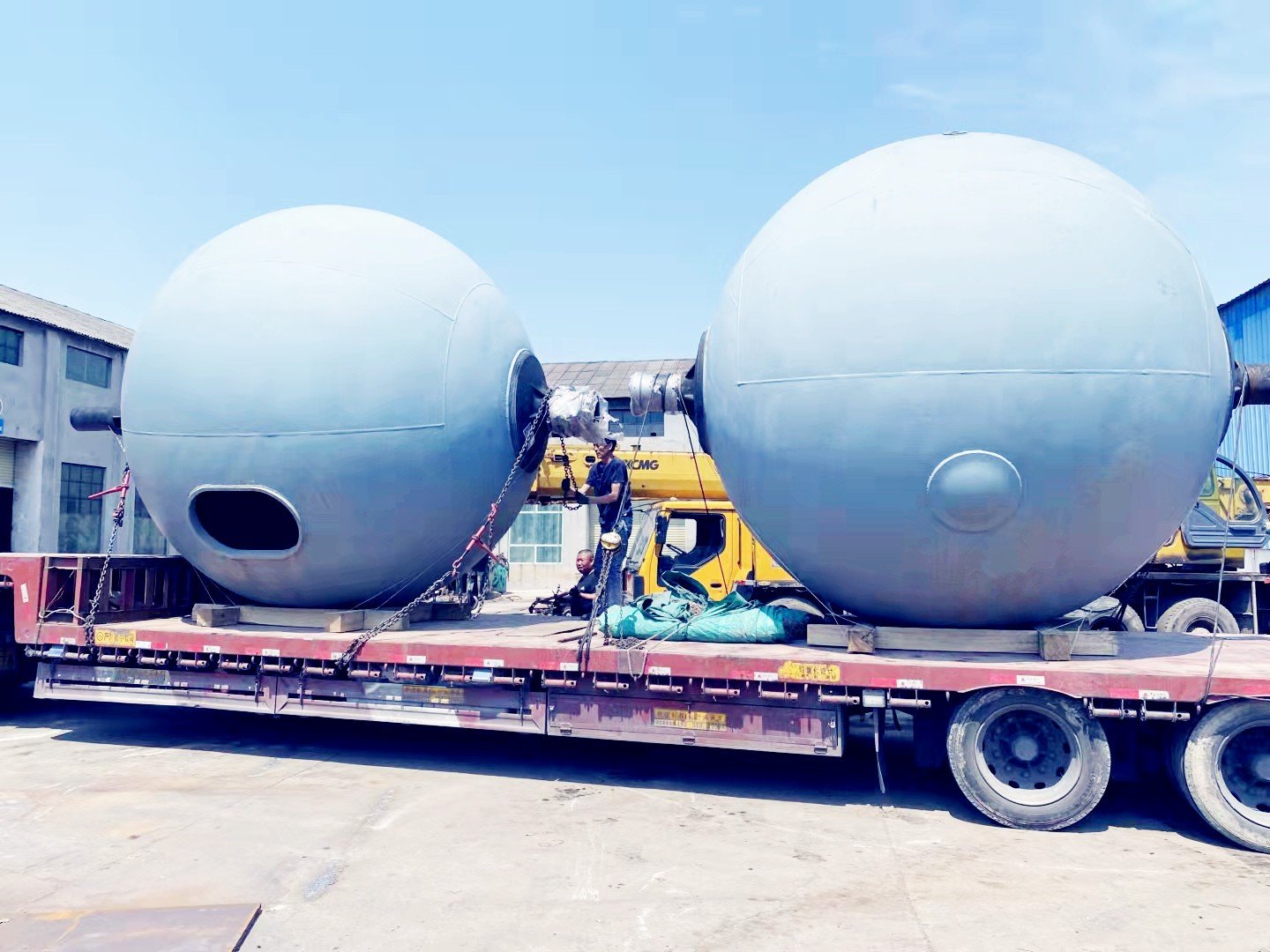

b.chemical virgin pulp machine.
Raw material could be wood chips,bamboo, sugarcane bagasse,rice straw or wheat straw etc.

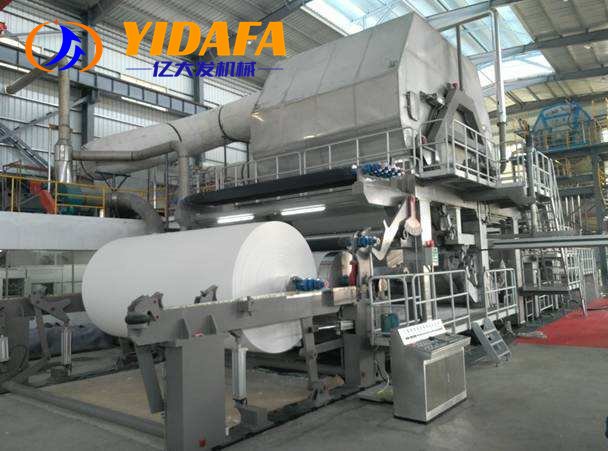

2.YIDAFA parent tissue paper machine for making toilet paper rolls.
tissue paper machine for making tissue and toilet paper roll from the pulp water suspension meeting the requirements of paper making through the process of dewatering and forming of filter screen, mechanical extrusion dehydration and drying. Tissue toilet paper making machine includes three main parts of forming, pressing and drying the above process, and is equipped with necessary finishing, coiling and transmission devices, as well as auxiliary systems such as pulp supply, pulp and white water circulation, vacuum, ventilation and exhaust, paper loss treatment and lubrication, and automatic control. The specifications of YIDAFA tissue toilet paper making machine are often expressed by the width of the finished paper (referred to as the width of the paper), the width of the copper mesh and the preferred working speed. The width of the modern large tissue toilet roll paper making machine can reach 11 m, the speed of the working car can reach more than 1000 m/min, the daily paper output can reach hundreds of tons, and the weight of the whole machine can reach more than 1000 tons, which is more than 100 meters long. Small paper machines are widely used in the production of general developing countries and some special papers, with a width of 1~3m and a working speed of tens of meters to 200 meters per minute.
More than 20 tons per day,cresent tissue toilet paper making machine is a better choice.
The production of toilet paper base paper generally includes two sections: pulp preparation and paper making. The most critical equipment is toilet paper machine. The paper machines that produce high-grade toilet paper in China are mainly imported from abroad. According to the difference of forming methods, there are mainly two types: crescent type and vacuum round screen type. By the end of 2008, more than 30 crescent-shaped toilet paper machines (including those under construction) and 47 BF toilet paper machines (including those under construction) had been introduced.
The main suppliers of crescent-shaped toilet paper machines include Austria Andritz AG, Finland Metso Paper, the United States Beloit (now closed), Italy Celli Paper, Poland PMP Group, Italy Over, Italy Recard, Korea Kyong ong, etc., of which 9 are imported from Andritz, Seven units (including those under construction) were introduced from Metso. The supplier of vacuum circular mesh (BF) toilet paper machine is Kawanoe Zoki of Japan.
The main users of crescent shaped toilet paper machine in China are: Hengan, APP Jinhongye, Guitang, Yongfengyu, Weida, Kimberly, Qianli, Prince Nipiao, Meijie, Zhongshun, etc.
The main users of vacuum circular screen type (BF type) toilet paper machine in China are: Weida, Zhongshun, Dongguan, Nanning Phoenix, Jiangmen Renke, Shandong Zhongshun, Dongguan Yongchang, Weifang Henglian, etc.
The crescent shaper was invented by Kimberley in the late 1960s. This invention has achieved a good combination of the quality of toilet paper and the speed of paper machine. After more than 30 years of practical use, crescent shaped toilet paper machine is the leading model of high-speed toilet paper machine in the world, and is also considered the best model. It has many advantages:
1) High speed, high productivity. Generally, the vehicle speed is 1000~2200 m/min, and the production capacity is 50~220 tons/day;
2) Fast and uniform dehydration;
3) High fiber retention and good paper quality;
4) Long service life of net and blanket;
5) Compared with the sanitary paper machine of the mesh holder, it has simple structure, convenient operation and requires fewer operators.
The most prominent advantages of the crescent shaped toilet paper machine are high speed, large capacity and good paper quality. It is generally suitable for large toilet paper mills. From the perspective of the product's softness, loose thickness and other quality indicators, the crescent shaped toilet paper machine, especially the model with double-layer headbox structure, has advantages over the BF type paper machine and is more suitable for producing high-grade tissue paper.
