A4 Paper Making Machine Price. Automatic Paper Product Making Machinery
A4 Paper Making Machine Automatic Paper Product Making Machinerya4 paper cutting and packing machine line
a4 paper making machine
a4 paper cutting and packing machine
a4 paper manufacturing machine
a4 paper cutting machine
printer machine a4 paper
second hand a4 paper making machine price
a4 paper machinery
a4 cutting paper machine
a4 manual paper cutting machine
paper machine a4
a4 paper counting machine
paper cutting machine a4

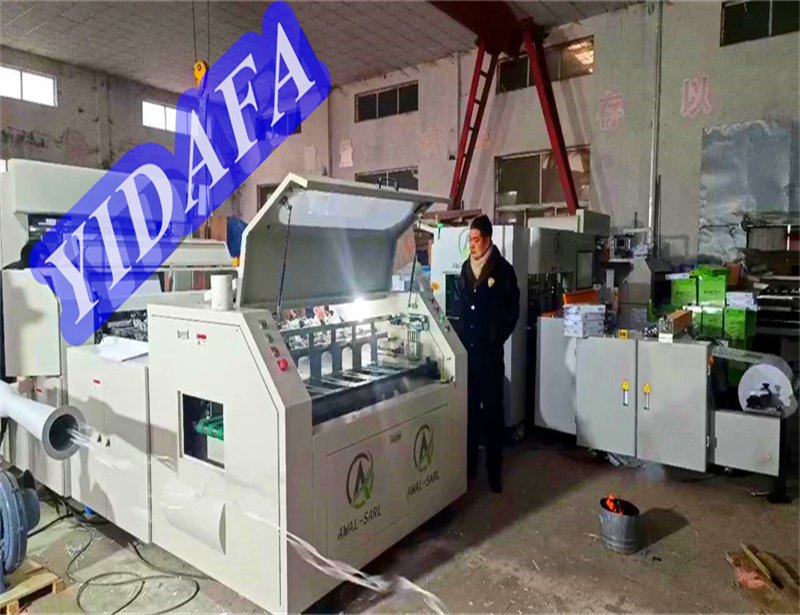

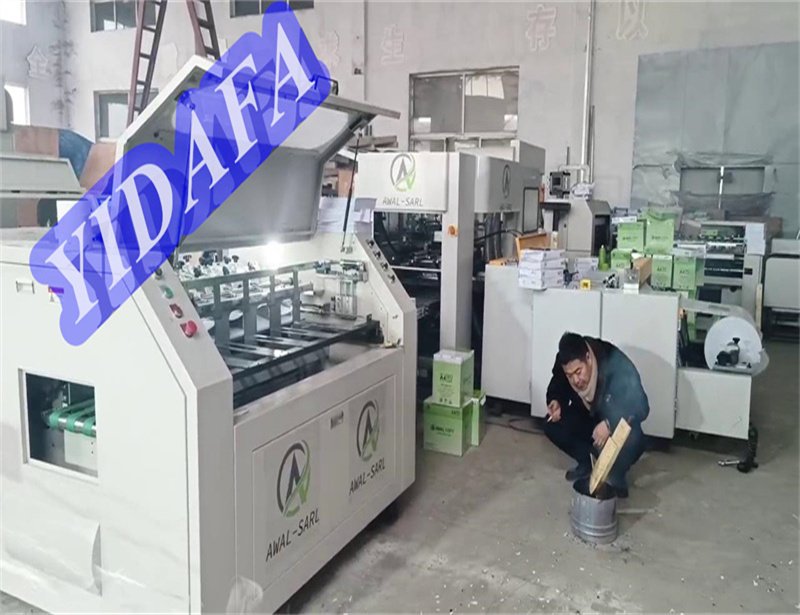

A4 Paper Machine Price.
including a4 size paper cutting machine and automati a4 paper reams packaging machine.
Speed: 3 ream/min.
Labor:2 workers at least.
Total Power:about 14kw.
Workshop size:200 square meters at least.
Transporting detail:one 40ft container
Payment terms:40% by T/T in advance as deposit, 60% by T/T before shipment.
(1) Cutting style: fix well the lower cutter and cut actively by upper cutter
(2) Cutter holder: adopts casting heavy style structure
(3) Slip bearing（2unit）
(4) Fount (2 unit）
(5) Lubricating oil can be recycled using
(6) Both upper and lower cutters adopts bar style imported balance silicic steel cutter
(7) Cutting blade （Spec.Thickness×width×Length：15×80×1150mm）
(8) Cutter position can be adjutable by hand
(9) Active transmission style: main motor transmission equipped with derailleur enable centrifugal wheel joined with connecting pole to run cutter reciprocating
(10) Main motor: by transducer speed adjusting （1unit）
(11) Transducer: (Germany Rexroth))1.5kw（1unit）
(12) Transmission: adopts gear wheel and chain wheel together structure
(13) Centrifugal wheel（2unit）
(14) Connecting pole （2unit）
(15) Slitting way: Bottom blade initiative, drive upper balde to slit.
(16) Adopts round cutters
(17) Upper cutter shaft adopts steel shaft ( 1 unit φ45 x 1500mm)
(18) Upper round cutters is made form shanghai Shenlong group (φ45 x 14.2x105mm)
(19) Bottom cutter shaft adopts steel shaft (spe. 1 unit φ55 x 1500mm)
(20) Bottom round cutter adopts shanghai shenlong cutter (φ55 x 14.2 x 80mm)
(21) Slitting precision : ±0.2mm
