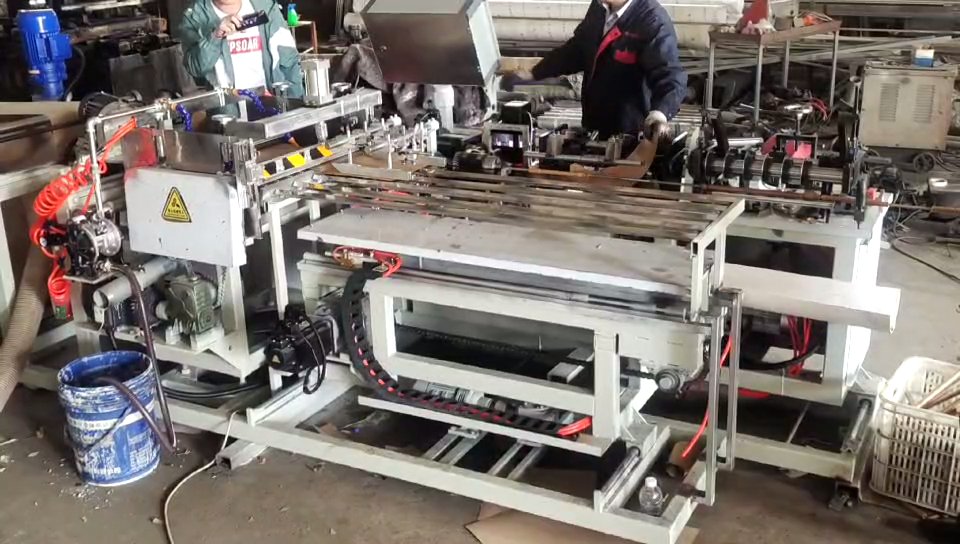

Parallel paper tube core making machine

PRODUCT DETAILS



Technical Specification
1.paper tube outer ring printing text
2. Directly make web paper into paper tubes and randomly cut them into
finished paper tubes of required length
3.the paper automatically add water, the paper does not bounce
4. paper glue less, save glue
5. the use of liquid level control, automatic pump glue
6. storage bucket, rubber groove with stainless steel plate design, acid and
corrosion resistance
7. Small motor power and low energy consumption

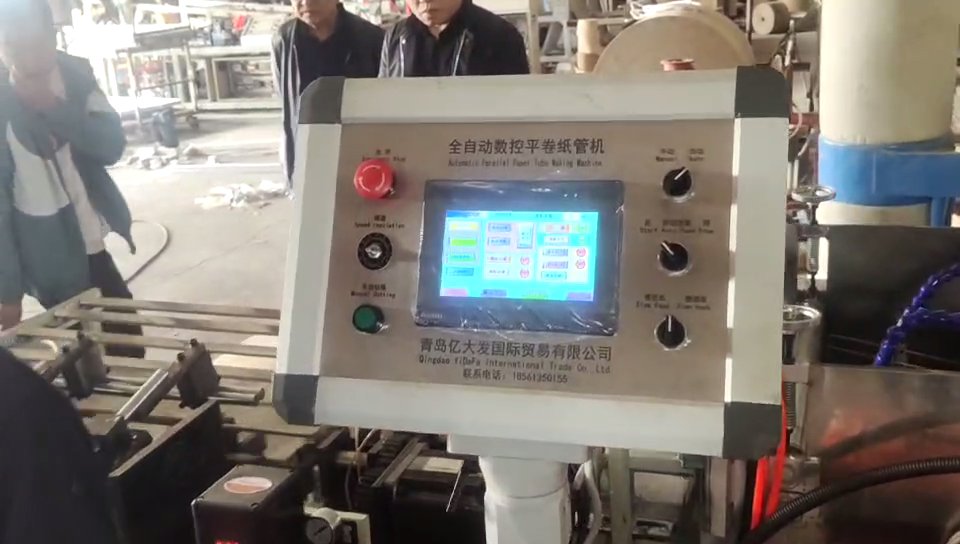

8. All the movements of the whole machine adopt numerical control design to
realize full automatic operation
9. All rotating parts that may come into contact with the glue shall be made of
wear-resistant alloy materials
10. Obtained two national patents

11. Realize unmanned operation



Technical Parameter



Inner diameter of paper tube

10~30mm

Thickness of Paper tube

0.5-4 mm

Max. length of Paper tube

600mm

Speed

10-12times/min

The number of operations

One person

Power

4.5kw

Voltage

380v

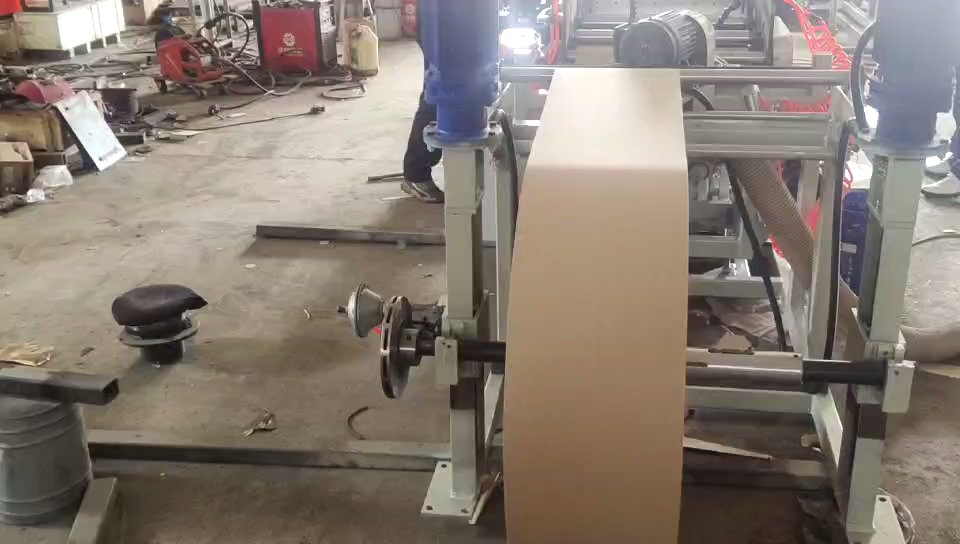

Max. Diameter of Base paper

800mm

Thickness of Base paper

80-280gsm

Dimension

3500*1500*1100mm
