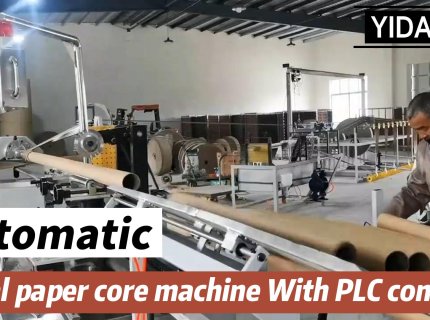

Two head 30~150mm Paper core making machine With Touch Screen and PLC controlling system-YIDAFA. This machine could make 30~150mm inner diameter paper core. Maxi thickness:15mm. Maxi length:5000mm. PLC control,Servo motor and recycling glue tank. Touch Screen.

It is mainly used for making small diameter and short length paper cores,such as plastic film cores,electrionic fireworks cores and wrapping paper cans. Number of paper layers:2~7 Paper tube diameter:15~76mm. The thickness of paper tube :1~5mm. Mini paper tube cutting lengh:90mm Main power:7.4kw.

It is mainly used in the production of various small inner diameter paper tubes. Inner diameter:15~60mm。 The thickness of tube wall:1~5mm. Paper Layers:2~7 layer. Main power:7.4kw.

200 Model Four heads Fully automated Spiral Paper Core Making Machine in China Details:Paper tube inner diameter ：30~200mm. Paper tube wall thickness:5~15 mm.

Tissue paper core making machine.This machine could make spiral paper core,used as inner core in toilet tissue paper rolls.

There is a big difference between parallel paper tube machine and spiral paper tube machine. The parallel paper tube machine uses the whole paper to form a tube in a direction parallel to the paper. The length of the paper tube depends on the width of the paper, and the thickness of the paper tube depends on the length of the paper. The spiral paper tube machine uses the strip paper that has been cut and rewound to adjust the angle according to the diameter of the required paper tube, and rolls the tube obliquely spirally. The thickness of the coiled tube of the spiral paper tube machine depends on the thickness of the paper and the number of layers. It is controllable and adjustable, and the length is generally unlimited. It can be precisely cut in the coiled tube according to your own need.Parallel paper tube machine appeared earlier, and later a large part of parallel paper tube machine was gradually replaced by the spiral paper tube machine. But parallel paper tube machine also has its own characteristics.
