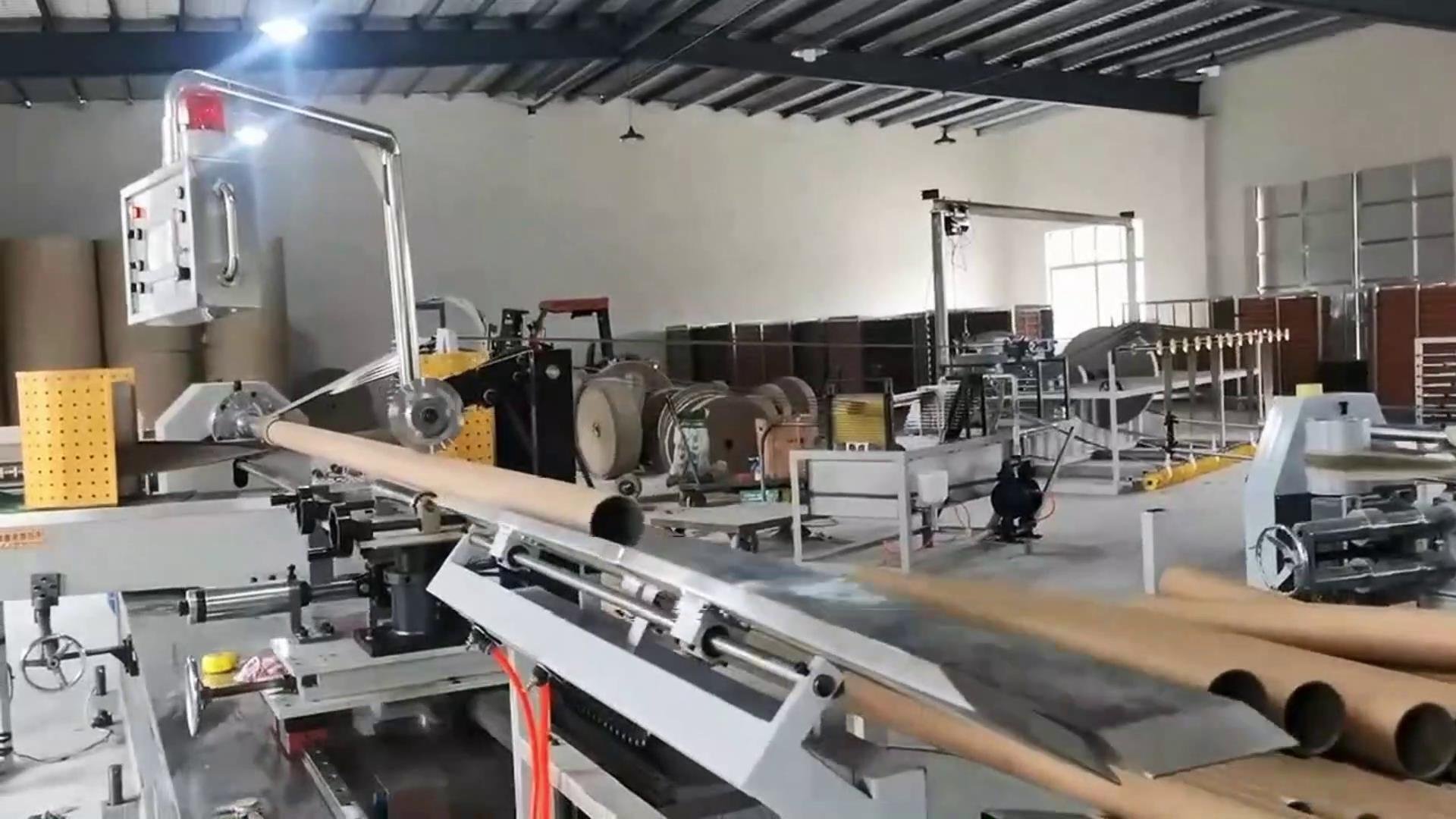

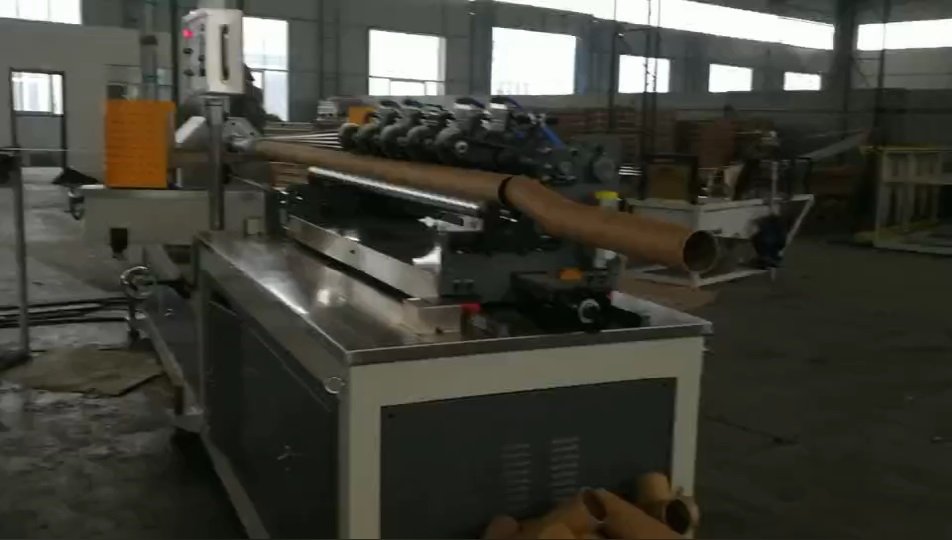

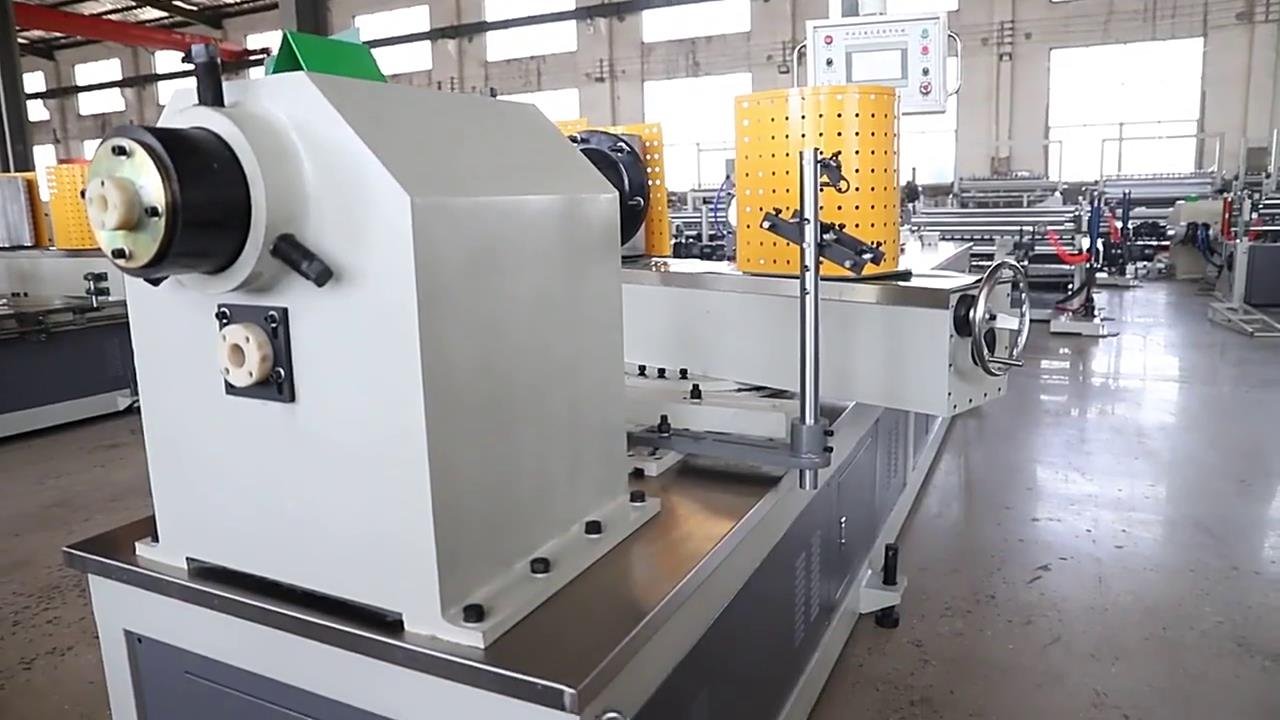

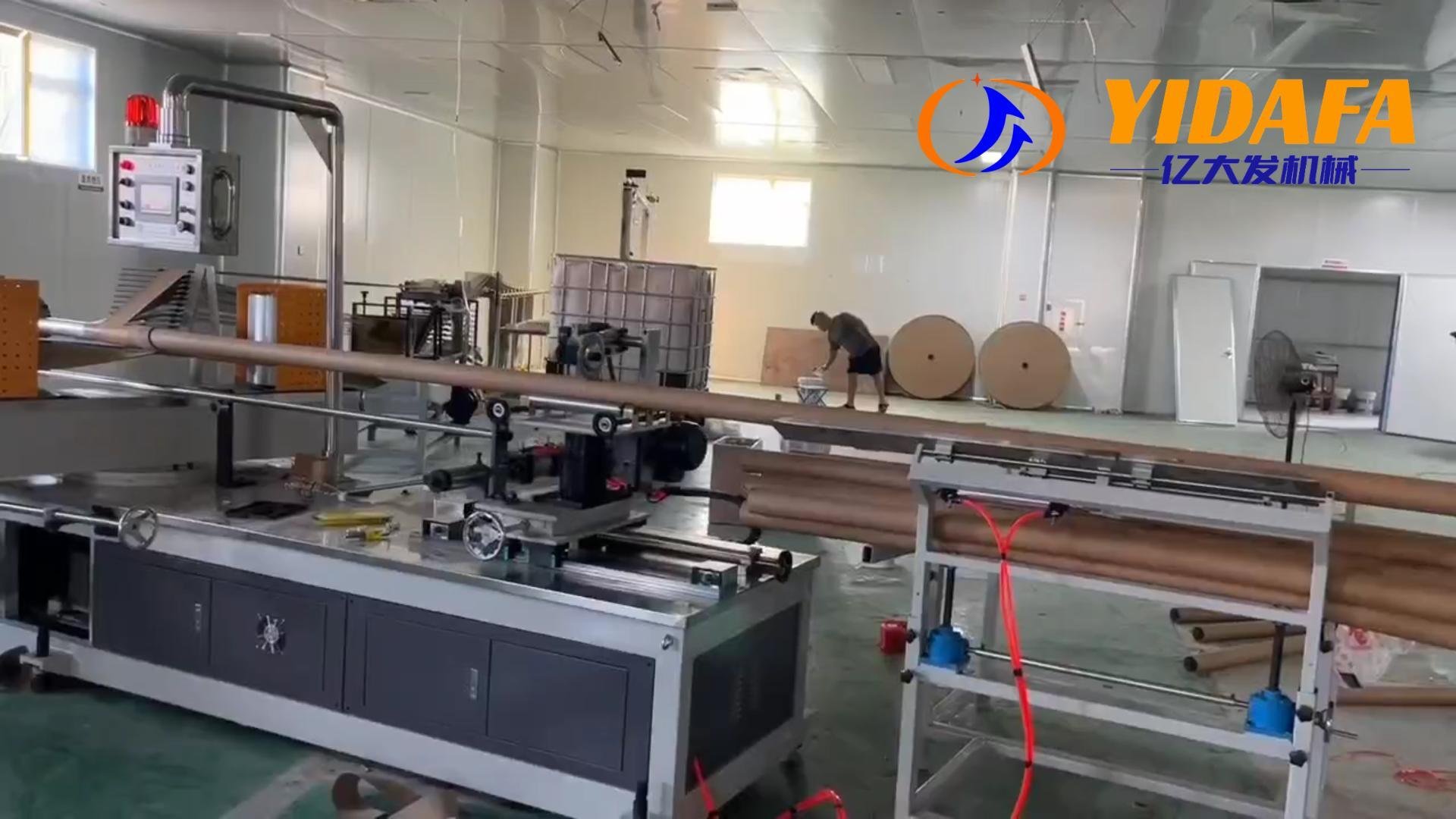

Two head 30~150mm Paper core making machine With Touch Screen and PLC controlling system-YIDAFA.
This machine could make 30~150mm inner diameter paper core.
Maxi thickness:15mm.
Maxi length:5000mm.
PLC control,Servo motor and recycling glue tank.
Touch Screen.
Two head 30~150mm Paper Core Making Machine With Touch Screen and PLC controlling system-YIDAFA
Usage
Common model, This paper core making machine is used for making tubes for all kind of tape, jumbo roll, chemical fiber, paper cans, etc.It is full automatic spiral paper core making machine.
Feature
Cheaper price, high popularity, high performance.
Adopted PLC logic control system.
Main motor is adopt vector type of high torque inverter for speed regulate
Positioning length by photo electricity with auto speed changing function, in order to meet high cutting precision.
Modern electric layout designing for easy and science using, maintaining and repairing.
There is a remote controller for easy operating（to stop or slow down the machine when lacked paper）
Low noise driving designing.
Adopt double size gluing and independent stainless steel gluing box, with imported silicone tube.
150 Model Two-Head CNC paper tube Machine With multi-cutter | |
paper layer | 2-12 plies |
Inner diameter of tube | 20-150（mm） |
Thickness of tube | 1-8（mm） |
Speed | 0-25（m/min） |
Fixed length mode | CNC (Optical Control) |
Winding head | Double head single belt |
Cutting type | CNC Automatic Tracking for Cutting |
Fixing Method of Core winding mould | Flange tightening |
Gluing way | Double sides glue |
control mode | Frequency control |
Input voltage | 380V/220V |
Number of operators | 1-3 |
