It is mainly used in the production of various small inner diameter paper tubes. Inner diameter:15~60mm。 The thickness of tube wall:1~5mm. Paper Layers:2~7 layer. Main power:7.4kw.
Inner diameter:15~60mm。
The thickness of tube wall:1~5mm.
Paper Layers:2~7 layer.
Main power:7.4kw.

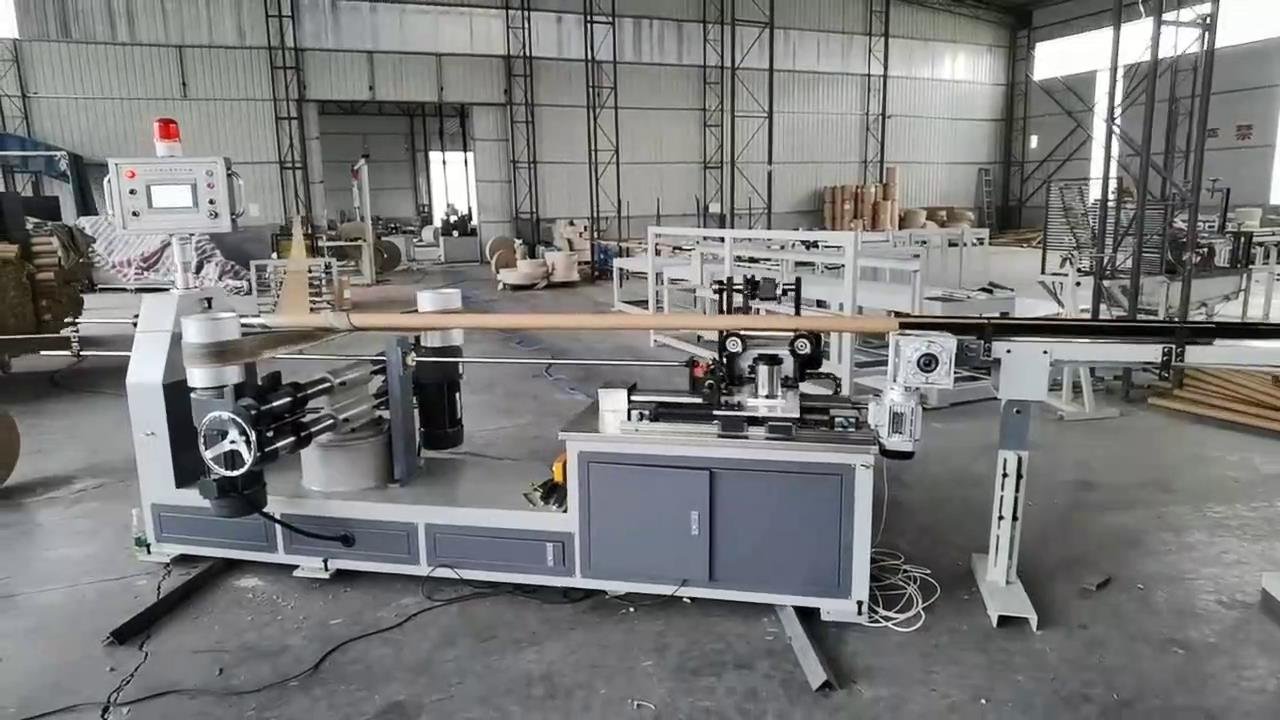

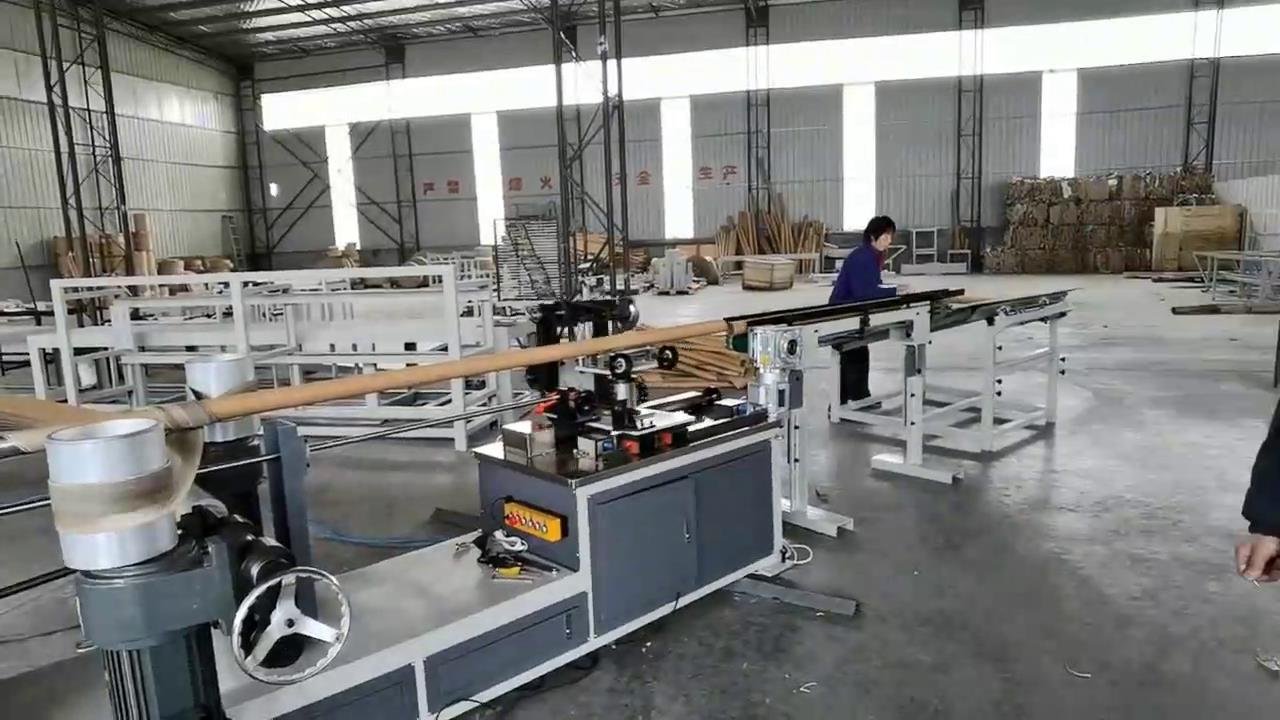

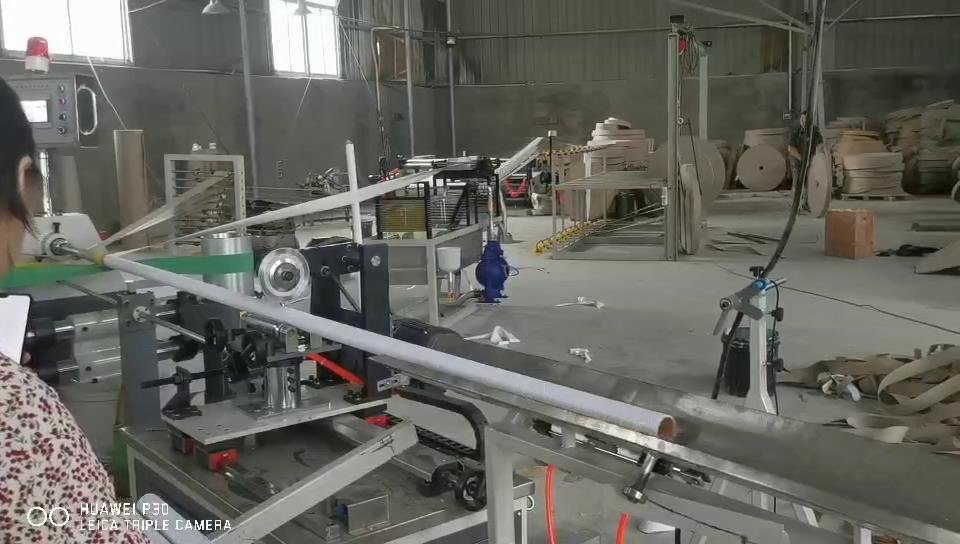

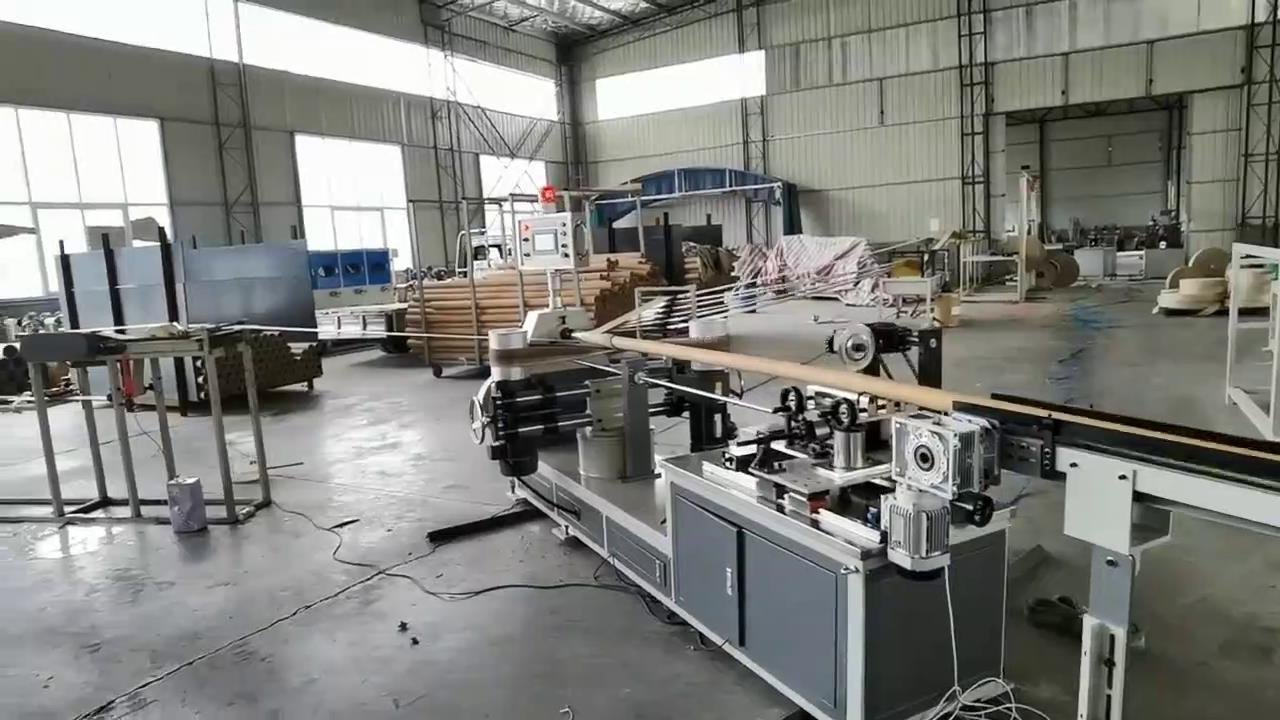

60MM ID TWO-HEAD PAPER CORE MAKING MACHINE-YIDAFA MACHINERY
Machine Detail | |
paper layer | 2-7layers |
inner diameter | 15-77（mm） |
thickness | 1-5（mm） |
speed | 0-45（m/min） |
Fixed length mode | light control |
Winding head | Two head |
Cutting method | Circular knife CNC automatic |
Gluing method | Double-sided glue |
way to control | Frequency |
Input voltage | 220V,60HZ(customized by buyer) |
Number of operators | 1-3 |
total weight | 1900kg |
Main engine power | 2*3.7kw |
PLC controller | Special products |
HMI | Special products |
Frequency converter | ENERGY |
Electrical components | Omron/Chint |
Signal element | Omron/Pefun |
Button/emergency stop | Siemens |
Pneumatic Components | Airtac/Tianao |
Host size： | 4300*1500mm*1800mm |
Area size： | 11000mm*5000mm |
Upper paper shelf | Right-angle belt hoisting |
Glue frame | Automatic gluing |
Bottom paper break | Automatic alarm |
Bottom surface paper | stainless steel pot device |
Paper guide wheel | stainless steel pipe |
Host table | Stainless steel plate |
Mandrel | 1 |
Tube belt | 1 pieces |
Unloading rack | Stainless steel automatic |
application tools | 1 set |
Usage:It is mainly used in the production of various small inner diameter paper tubes or cores.such as spinning tube,cloth tube,plastic film tube,toilet paper tube,agricultural film tube and leather tube.
Overview:
The cutting table is equipped with servo synchronous round knife cutting,so that the paper tube tap is uniform and the cutting end face is smooth;
the mold is screw tight,easy to replace.
Small model,small footprint,energy saving and high efficiency,fast production speed.
