Paper Recycle Machine

PAPER RECYCLE MACHINE FOR MAKING KRAFT CARTON CARDBOARD

1.WASTE PAPER PULPING

Paper Recycle Machine could make paper pulp fiber and then form paper rolls.

1. Waste paper pulping refers to the production process of using waste paper as raw material, undergoing pulp crushing treatment, and necessary processes such as deinking and bleaching to produce pulp.

2. The production of waste paper pulp mainly consists of four parts: pulp crushing, screening and purification, washing and concentration, and bleaching.

According to the different raw materials, production processes, and product characteristics, the production process of waste paper pulp is mainly divided into non deinked waste paper pulp and deinked waste paper pulp.

IF YOU HAVE AN INTEREST, PLEASE CONTACT US.

A typical deinking process uses mechanical and chemical unit processing to remove ink from fibers. The production process mainly includes the dissociation of waste paper, screening and purification of waste pulp, deinking, concentration and storage of pulp, thermal dispersion, etc.

Deinking pulp can be used for products such as newsprint, thin cotton paper, printing and copying paper, magazine paper (super gloss paper/light coated paper), certain grades of hard paper boxes, etc.

The process flow of non deinked pulp is much simpler than that of deinked pulp. The production process uses mechanical cleaning, which eliminates processes such as deinking and bleaching.

Non deinked pulp is mainly used to produce products such as cardboard, corrugated paper, and low-grade cardboard. Most waste paper pulp lines are integrated with papermaking.

2.KRAFT PAPER ROLL MAKING MACHINE

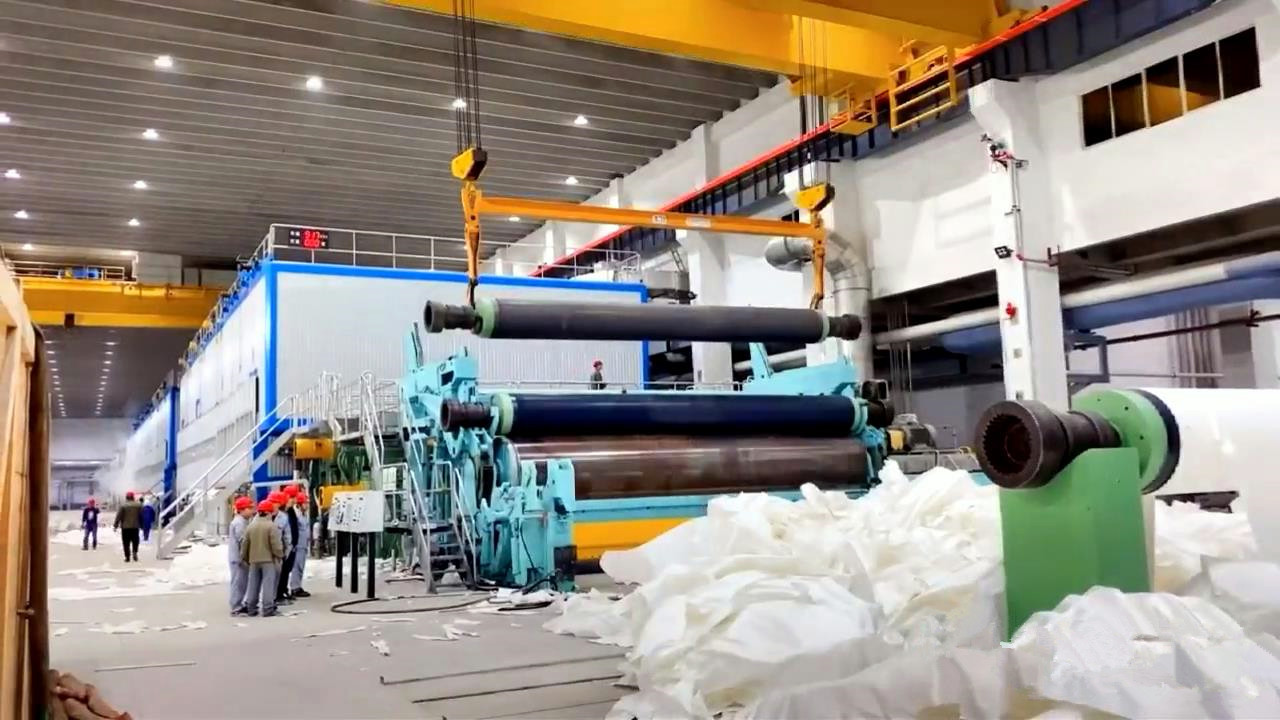

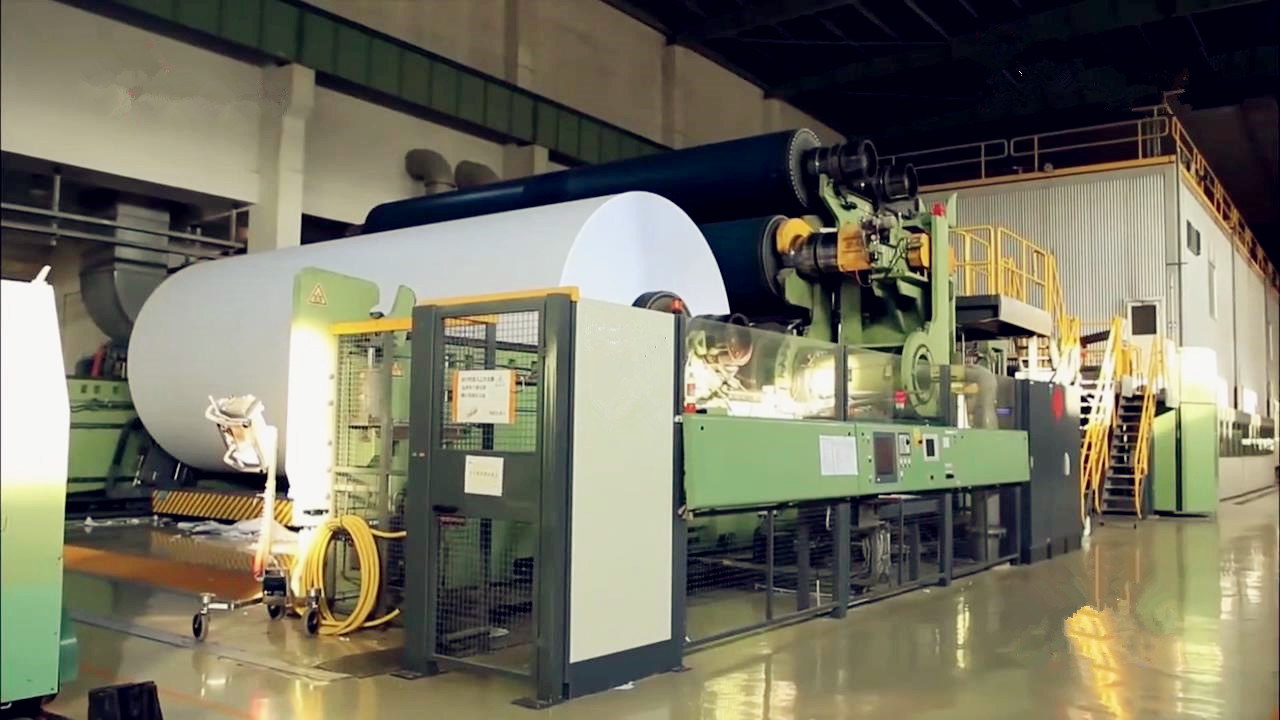

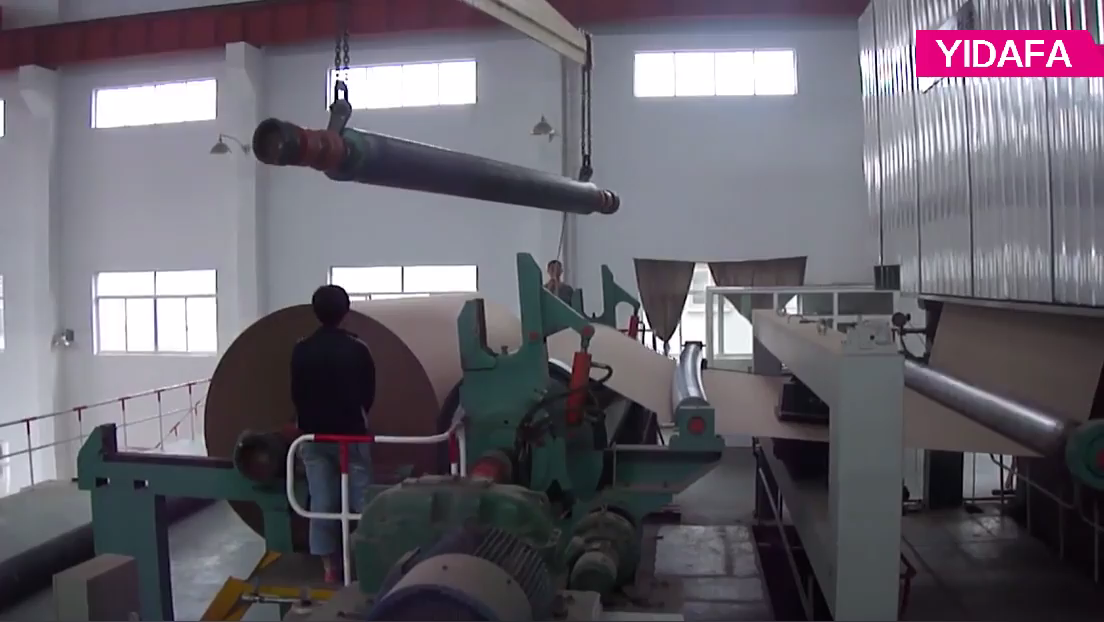

Kraft Paper Roll Making Machine that produces paper by dewatering the pulp water suspension that meets the requirements of papermaking through a filter, mechanical extrusion dewatering, and drying processes. The paper machine consists of three main parts: forming, pressing, and drying, which complete the above process. It is equipped with necessary finishing, coiling, and transmission devices, as well as auxiliary systems such as pulp supply, pulp and white water circulation, vacuum, ventilation and exhaust, paper loss treatment and lubrication, and self-control. The specifications of paper machines are often expressed by the width of the finished paper they produce (referred to as the width of the paper), the width of the copper mesh, and the preferred operating speed. The width of modern large paper machines can reach 11m, the working speed of the machine can reach over 1000m/min, the daily paper production can reach hundreds of tons, and the weight of the entire machine can reach over a thousand tons, reaching over a hundred meters. Small paper machines are commonly used in developing countries and some specialty paper production, with a width of 1-3 meters and a working speed of tens of meters to 200 meters per minute. Traditionally, the paper machine is divided into long nets and circles based on the type of paper forming machine used

Mixed models of mesh, sandwich mesh, and long round mesh; There are also cultural paper machines (including newsprint), cardboard machines (including packaging paper), toilet paper machines, and special paper machines based on their main product varieties; Or according to the thickness of the produced paper, it can be divided into thin paper machines, cardboard machines, and conventional paper machines.

According to the needs of the copying process, paper machines have various structural forms and are generally composed of components such as flow, forming, pressing, drying, finishing, coiling, and transmission, as well as supporting equipment such as auxiliary systems.
