AUTOMATIC A4 PAPER MAKING MACHINE PRICE

How much is the price of automatic a4 paper making machine? Automatic a4 paper making machine has two machines,paper rolls to sheets cutting machine and automatic packaging machine. The sheets cutting machine have two rolls feeding and four rolls feeding model. The production line manufacture the office copy paper ream 5-8 tons per 8hours. The production is very suitable to A4 paper business beginner. Middle level capacity and economic price.

PRODUCT DETAILS

AUTOMATIC A4 PAPER MAKING MACHINE PRICE|YIDAFA


How much is the price of automatic a4 paper making machine? Automatic a4 paper making machine has two machines,paper rolls to sheets cutting machine and automatic packaging machine. The sheets cutting machine have two rolls feeding and four rolls feeding model. The production line manufacture the office copy paper ream 5-8 tons per 8hours. The production is very suitable to A4 paper business beginner. Middle level capacity and economic price.


SEND INQUIRY



Max cutting width

1100mm

1400mm

1600mm

Max unwinder roll ID

φ1400mm

φ1400mm

φ1400mm

Cutting length

A4/A3

A4/A3

A4/A3

Cutting speed

30-200 cuts/min

30-200 cuts/min

30-200 cuts/min

Precision

±0.2mm

±0.2mm

±0.2mm

Cutting thickness

70-500g/m2

70-500g/m2

70-500g/m2

Stacking height

Max 500mm

Max 500mm

Max 500mm

Total power

16-20kw

16-20kw

16-20kw

Weight

6000-8000kgs

8000-10000kgs

10000-13000kgs

Dimension

12000/17000*3200*2200
3200*4000

12000/17000*3500*2200
3200*4000

12000/17000*3700*2200
3200*4000



Fully Automatic Multi Feeding Roll To Sheet a4 Paper Cutting and packing Machine A3 A4 paper making machine

  1. We adopt Yaskawa Japan servo motor to control the length of cutting, driving system adopt multi-control like start-over etc. This machine easy operating, high precision cutting, working stable, low-noise. Frequency control motor, automatic counting, alarm and automatic-stop, magnetic powder tension control. Vertical multi-section cutting, waste edge is blowing by fan automatically.

  2. Adopts pneumatic automatic materials loading system with much easy operation and convenience.

  3. This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control, can be vertically slitting, adopt blower fan to get rid of waste.

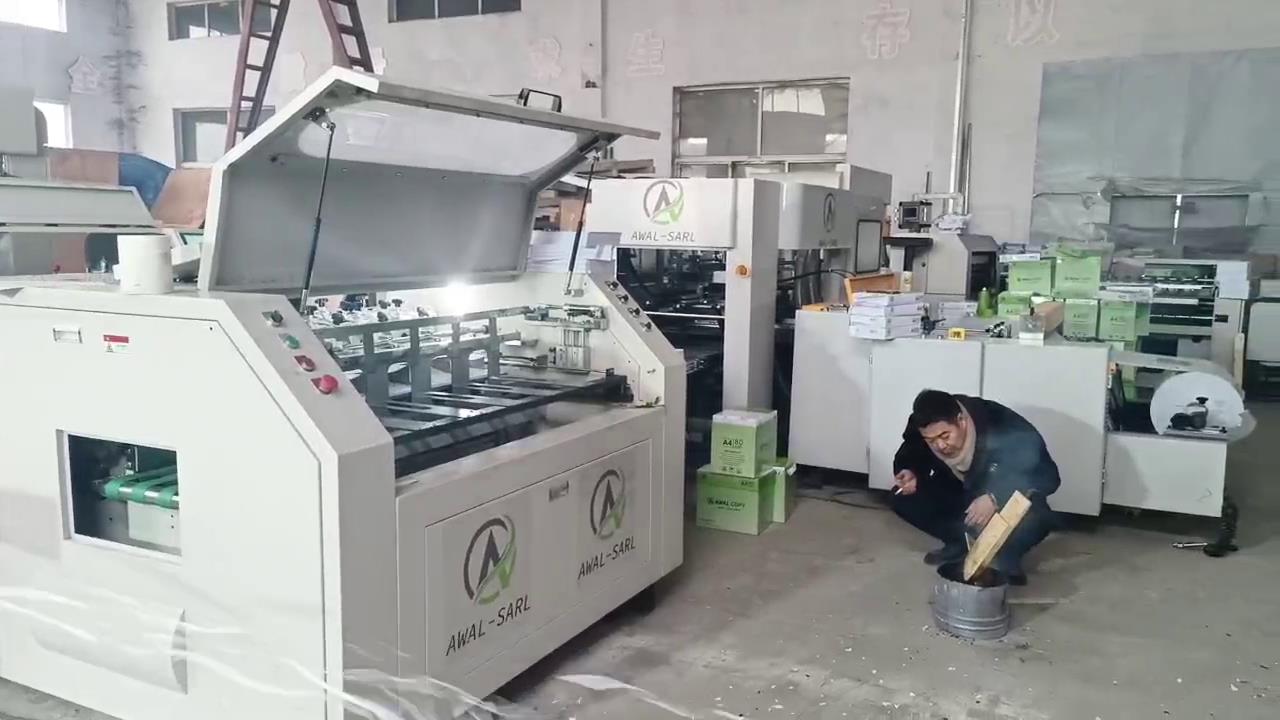

A4 Paper Making Machine Production Line

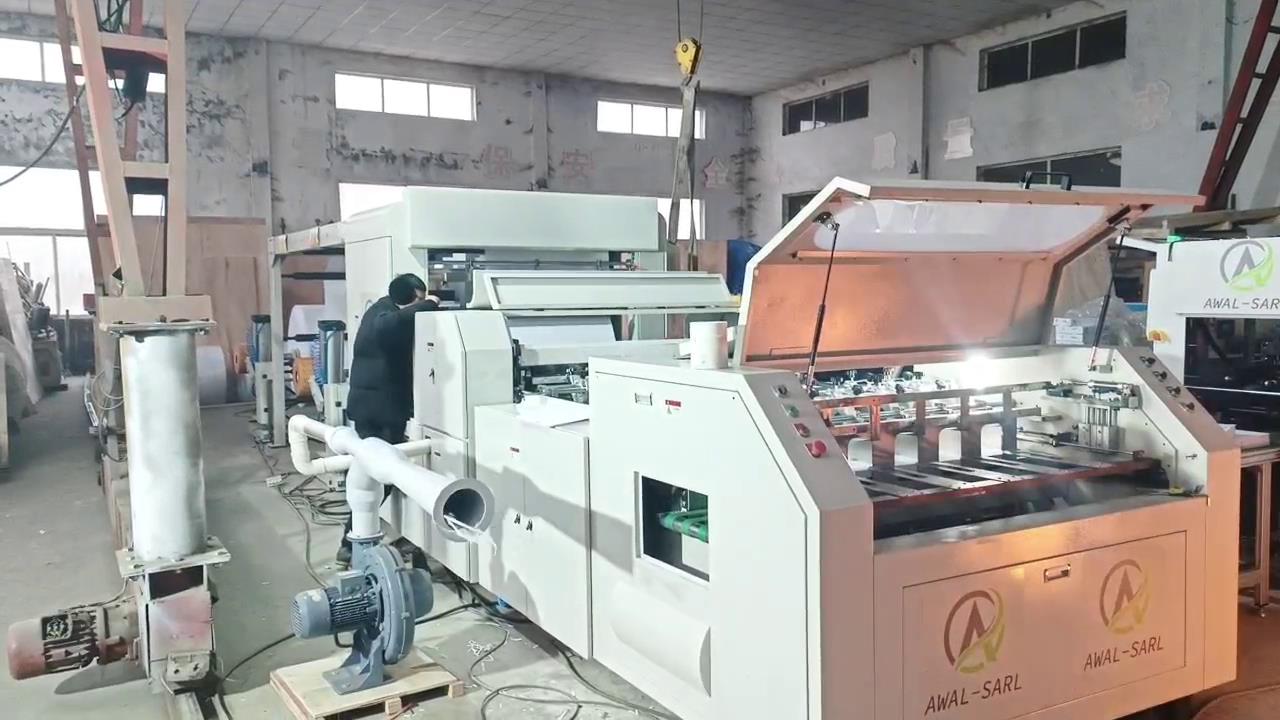

A4 Paper Making Machine Production Line

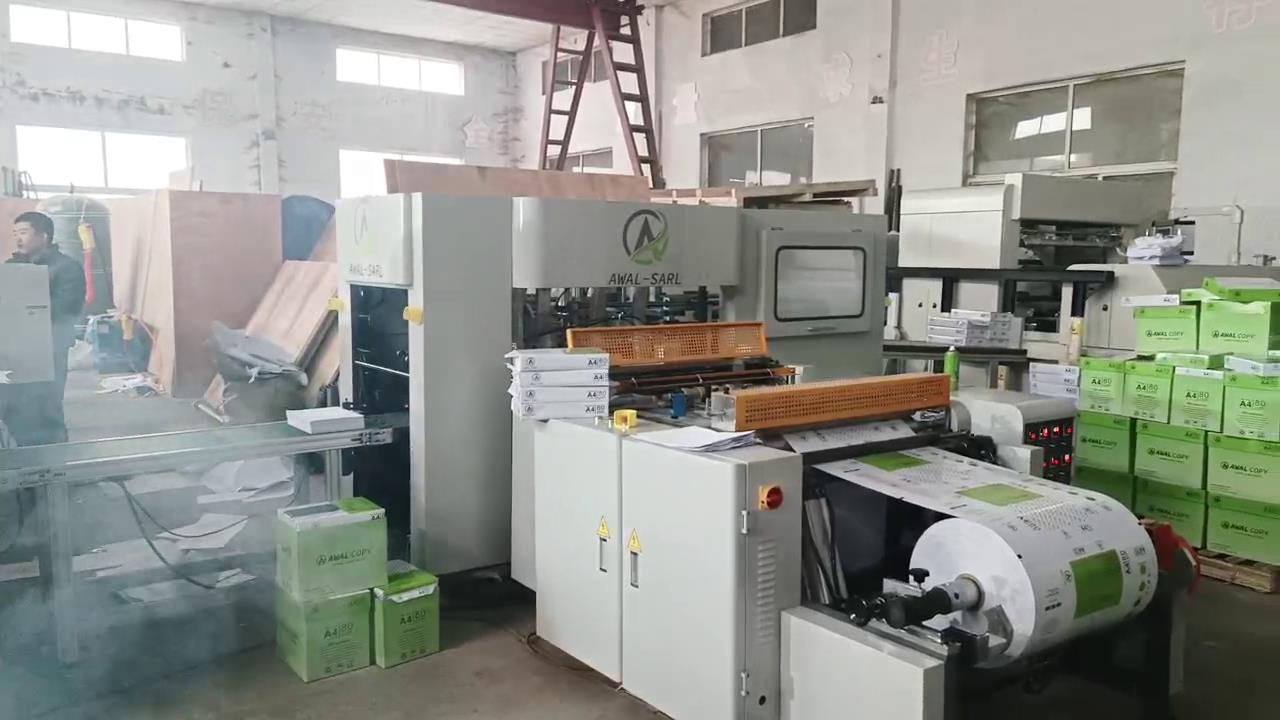

A4 Paper Making Machine Production Line
