YDF200 Factory Supply Spiral Paper Tube Making Machine

200 Model Four heads Fully automated Spiral Paper Tube Making Machine Details:Paper tube inner diameter :30~200mm. Paper tube wall thickness:5~15 mm.

PRODUCT DETAILS

200 Model Four heads Fully automated Spiral Paper Tube Making Machine

Details:Paper tube inner diameter :30~200mm.

Paper tube wall thickness:5~15 mm.


PRODUCT DETAILS

YDF200 Factory Supply Spiral Paper Tube Making Machine


200mm Model Spiral Paper Tube Making Machine

YDF150 paper tube making machine is a machine that produces paper tubes. The paper tubes produced by the paper tube machine are used in various industries, such as tubes for chemical fiber industry, tubes for film industry, tubes for printing industry, tubes for papermaking industry, tubes for leather industry, tubes for food packaging, tubes for construction industry, exhibition industry Use the tube and so on. There are also various types of paper tube machines. The most common paper tube machines are spiral paper tube machines and flat roll paper tube machines. Paper tube making machines can be divided into spiral paper tube making machines, parallel paper tube making machines, and pagoda-shaped paper tube making machines according to the process of rolling paper tubes.




According to different purposes, paper tube making machines can be divided into: tube cutting machine, tube rolling machine, capping machine, and precision cutting machine.

According to the degree of intelligence, the paper tube machine can be divided into: intelligent numerical control spiral paper tube making machine, program-controlled spiral paper tube making machine.

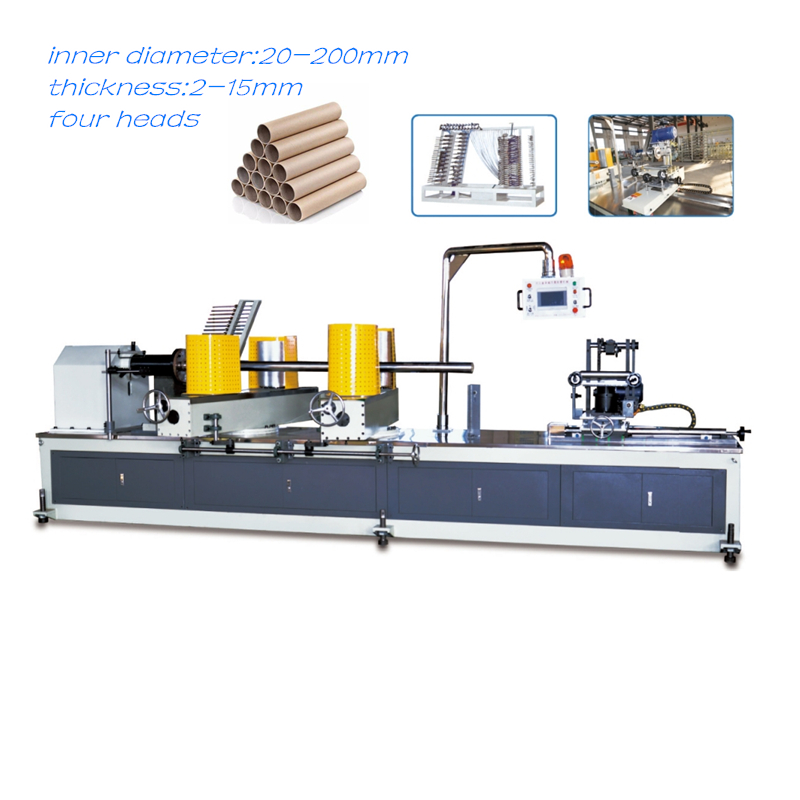

Four Heads 200mm Paper Tube Machine

1.Technical parameter

Roll tube paper layer

3-25 (layers)

Paper tube diameter

30-200 (mm)

Paper tube thickness

5-15 (mm)

The Finished Paper Tube Core Cutter Length

1000mm

Production speed

0-25 (m / min)

Fixed-length mode

Light Control (Infrared)

Winding machine head

Four machine head

Cutting method

Single round knife cutting

Core mold fixed way

Flange plus tight

Glue way

Double-sided adhesive

control method

Frequency

Input voltage

380V / 220V

Number of operators

1-3 people

2.Size

Host Size: L * W * H

4200mm*1700mm*1900mm

Land area: length *width

20000mm*9000mm

Hub diameter

294mm

Hub height

360mm/430mm

Minimum track

1000mm

The biggest argument

1250mm

total weight

4500kg

3.Drive System

Monitor rate

18kw Shanghai strong speed

Host speed

1400r / min

The maximum wheel speed

47r / min

Hub output torque

8500N.m

Reducer models

WPO 155 Hangzhou Xiaoshan

Drive chain model

12A * 2

Wheel drive

4 wheel drive

Cutter motor

0.4kw gear motor Shanghai Ott

Bearing

Universal bearings

4.Control System

Inverter

An Rui Ji products

The main implementation of the device (contactors,etc.)

Chint product

Signal element (proximity switch, etc.)

Shanghai industrial products

Cylinder components

tian ao products

Synchronous control

pneumatic

Fixed-length way

Proximity switch

PLC controller

wei kong products

HMI

Kunlun products

Emergency stop button

Jiangyin Yangtze River brand

5.Configuration device

Drop tube rack

automatic

Belt adjustment

Adjust manually

Paper frame swing angle

Adjust manually

For glue

Automatic stainless steel heating plastic tank

Bottom paper for lubrication

Automatic lubrication of stainless steel basin

Tension adjustment

Mechanical adjustment

Paper holder type

Right-angle fixed lifting on the paper holder

Roll mandrel

1

Roll tube belt

2 pieces

Applications

Have

Bottom, surface paper device

Stainless steel paper holder, paper cone

Under the rack

Stainless steel plate

Host

Stainless steel countertops

Paper guide

stainless steel pipe


This machine adopts advanced production and processing technology, with the four main driving wheel assembly, full computer digital frequency control, automatic tracking in cutting .This paper tube making machine is suitable for manufacturing and processing paper tube or tube core in paper making, chemical fiber, texti le, plastic, medicine, food and packaging industries.

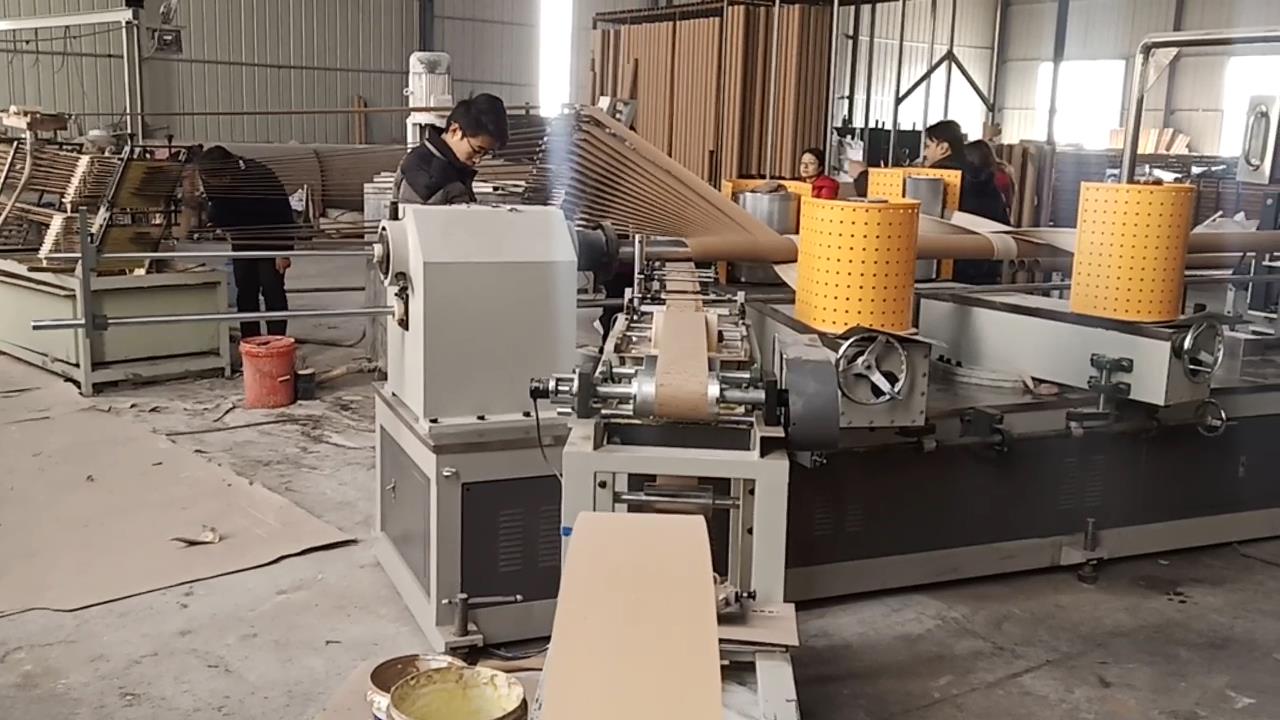

paper tube making machine (2)

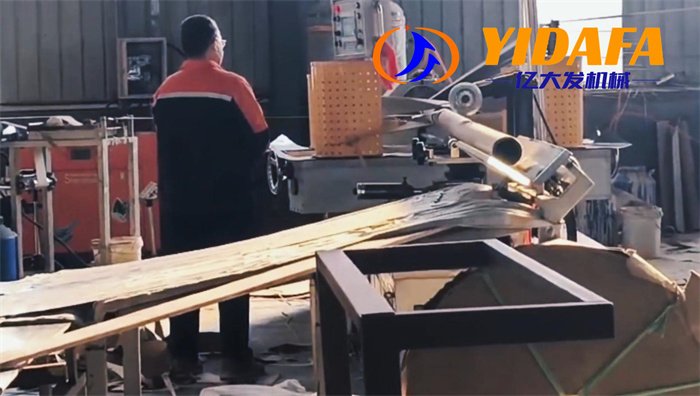

paper tube making machine (27)

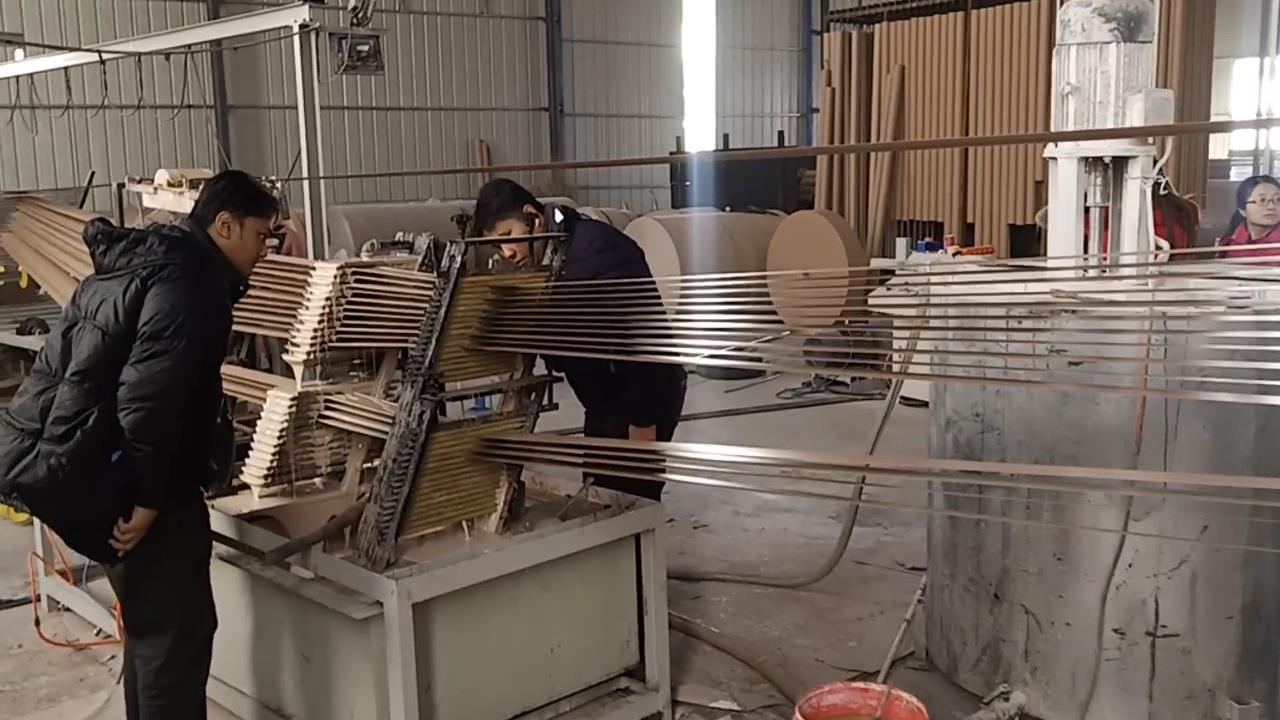

paper tube making machine (64)

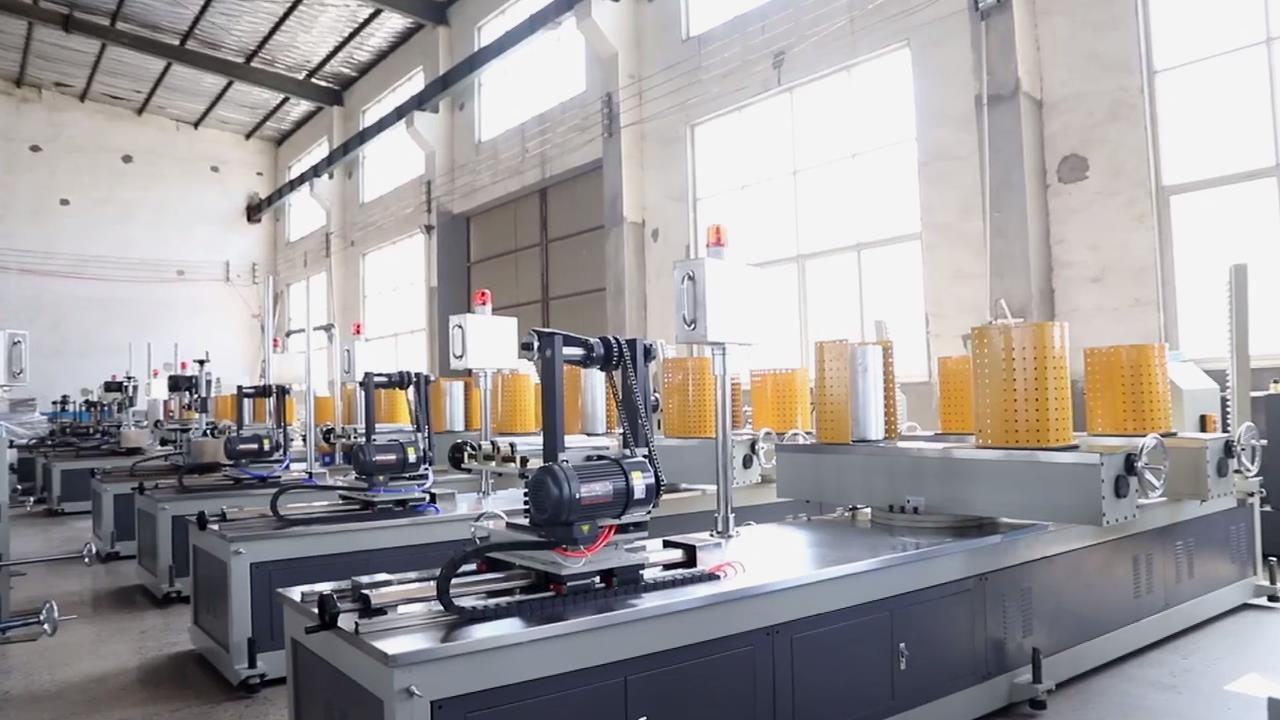

paper tube making machine (61)
