Waste Paper Recycle Machine To Make Toilet Tissue

Waste Recycle pulp toilet paper machine is a complete set of equipment that uses recycled waste paper as raw material to produce toilet tissue paper raw material rolls through processes such as rinsing and pressing.

PRODUCT DETAILS

Product introduction: This is a complete production line that can produce toilet paper raw paper rolls from waste paper. Eco-friendly, suitable for small and medium-sized factories.

PRODUCT DETAILS

WASTE PAPER RECYCLE MACHINE TO MAKE TOILET TISSUE


1.Waste Recycle pulp toilet paper machine is a complete set of equipment that uses recycled waste paper as raw material to produce toilet tissue paper raw material rolls through processes such as rinsing and pressing.


2.Pulping Process of Recycled Pulp Tissue Paper Making Machine

◆PRODUCT PROCESS

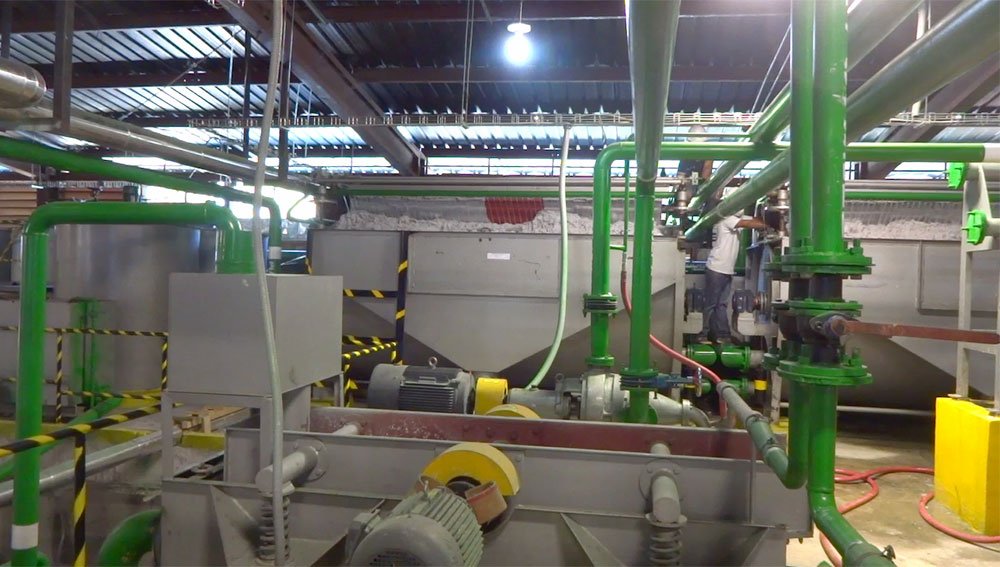

◆RECYCLED PAPER SLURRY SYSTEM




3.SPECIFICATION


Paper making machine technical specification:

1. Main Product:

Toilet paper, napkin paper and drawing and so on

2. Grammage:

15~30g/㎡

3. Equipment form

The inversion of slurry

4. Capacity:

5~5.5 1T/24h

5. Raw paper width:

1880-2000mm

6. Design speed:

180m/min

7. Transmission speed:

70-150m/min

8. Dynamic balancing speed:

300m/min

9. Roller balance:

G2.5 class

10. Dryer balance:

C4 class

11. Winding paper roll:

C1.6 class

12. Transmission mode:

Ac motor frequency control of motor speed digital distribution transmission

13. Arrangement mode:

Right or left arrangement(selected by the user)

14. Gauge:

2400mm

15.Large equipment 1

Dryer cylinder:Ø2500mm×1 set

16.Large equipment 2

Cylinder mould:Ø1500 mm×1set
